74VCX1632245LBR
IC TRANSCEIVER 54TFBGAManufacturer: STMicroelectronics
Categories: Buffers, Drivers, Receivers, Transceivers
Quality Control: Learn More

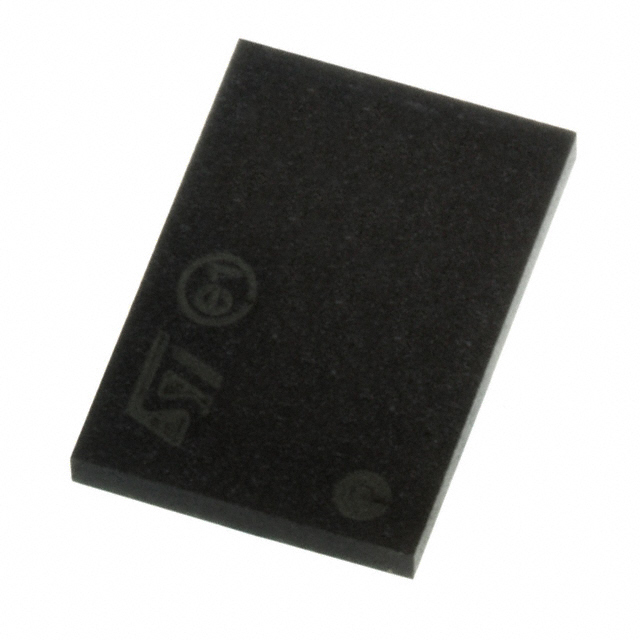

STMicroelectronics 74VCX series translation transceiver, part number 74VCX1632245LBR, is a dual 8-bit, 3-state transceiver designed for high-performance signal translation. This component features two independent 8-bit elements, each with 3-state outputs. Operating across a wide voltage range from 1.65V to 3.6V, it supports efficient bus interfacing and signal conditioning. The device is supplied in a compact 54-TFBGA (8x5.5) package, suitable for surface mounting. Typical applications include advanced computing systems, telecommunications infrastructure, and industrial automation. The transceiver offers robust drive capabilities with output current specifications of 8mA/8mA and 18mA/18mA for High/Low states. It operates within an ambient temperature range of -40°C to 85°C and is provided on tape and reel.
Additional Information
Series: 74VCXRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 54-TFBGA |
| Output Type | 3-State |
| Mounting Type | Surface Mount |
| Number of Elements | 2 |
| Logic Type | Translation Transceiver |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 1.65V ~ 2.7V, 2.3V ~ 3.6V |
| Input Type | - |
| Number of Bits per Element | 8 |
| Current - Output High, Low | 8mA, 8mA; 18mA, 18mA |
| Supplier Device Package | 54-TFBGA (8x5.5) |
