ISL3036EIRZ-T7A
IC TRANSLTR BIDIRECTIONAL 14QFNManufacturer: Renesas Electronics Corporation
Categories: Translators, Level Shifters
Quality Control: Learn More

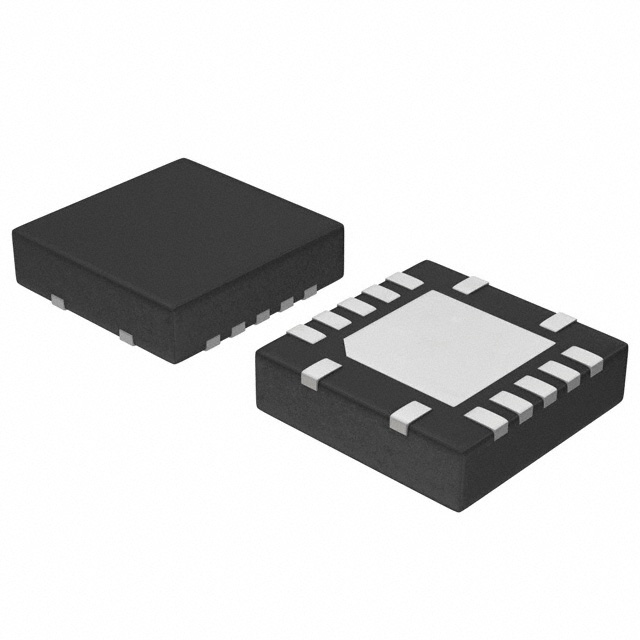

Renesas Electronics Corporation's ISL3036EIRZ-T7A is a single-circuit, quad-channel bidirectional voltage level translator. This 14-QFN (3.5x3.5) packaged component supports data rates up to 100Mbps and features auto-direction sensing for flexible interface translation. Designed for surface mount applications, it operates across a wide temperature range of -40°C to 85°C. The device accommodates VCCA voltages from 1.35V to 3.2V and VCCB voltages from 2.2V to 3.6V, offering versatile power domain compatibility. Output configurations include both open-drain and push-pull signaling. This component is utilized in various applications, including consumer electronics and industrial automation. The ISL3036EIRZ-T7A is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Auto-Direction Sensing |
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-VFQFN Exposed Pad |
| Output Type | Open Drain, Push-Pull |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Data Rate | 100Mbps |
| Supplier Device Package | 14-QFN (3.5x3.5) |
| Channel Type | Bidirectional |
| Output Signal | - |
| Translator Type | Voltage Level |
| Channels per Circuit | 4 |
| Voltage - VCCA | 1.35 V ~ 3.2 V |
| Voltage - VCCB | 2.2 V ~ 3.6 V |
| Input Signal | - |
| Number of Circuits | 1 |
