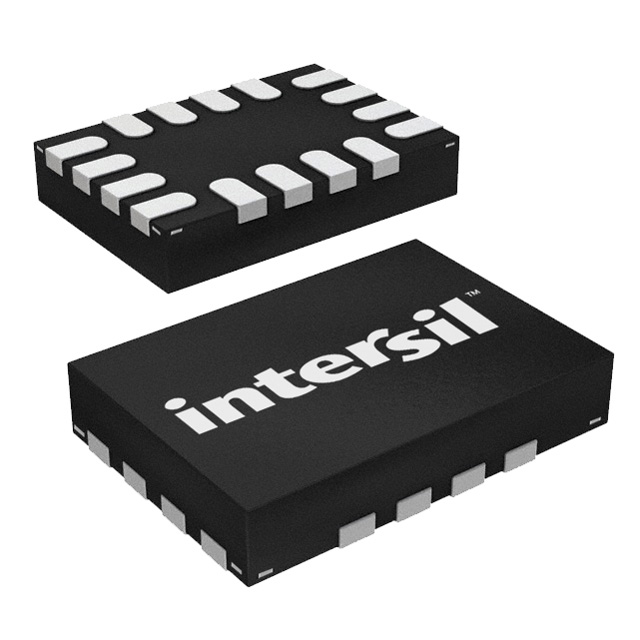

ISL3036EIRUZ-T
IC TRANSLATOR BIDIR 16UTQFNManufacturer: Renesas Electronics Corporation
Categories: Translators, Level Shifters
Quality Control: Learn More
Renesas Electronics Corporation ISL3036EIRUZ-T is a single-circuit, 4-channel bidirectional voltage level translator. This device supports data rates up to 100Mbps and features auto-direction sensing, simplifying interface design. It operates with VCCA in the range of 1.35V to 3.2V and VCCB from 2.2V to 3.6V. The output stages offer both open-drain and push-pull configurations. Packaged in a compact 16-UTQFN (2.6x1.8) with tape and reel packaging, the ISL3036EIRUZ-T is suitable for surface-mount applications. This component finds use in telecommunications, consumer electronics, and industrial automation systems where voltage domain translation is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Auto-Direction Sensing |
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-UFQFN |
| Output Type | Open Drain, Push-Pull |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Data Rate | 100Mbps |
| Supplier Device Package | 16-UTQFN (2.6x1.8) |
| Channel Type | Bidirectional |
| Output Signal | - |
| Translator Type | Voltage Level |
| Channels per Circuit | 4 |
| Voltage - VCCA | 1.35 V ~ 3.2 V |
| Voltage - VCCB | 2.2 V ~ 3.6 V |
| Input Signal | - |
| Number of Circuits | 1 |
