QS3390QG
IC MUX/DEMUX 1 X 16:8 28QSOPManufacturer: Renesas Electronics Corporation
Categories: Signal Switches, Multiplexers, Decoders
Quality Control: Learn More
Renesas Electronics Corporation QS3390QG is a high-performance QuickSwitch® multiplexer/demultiplexer. This device features a single 16:8 circuit configuration, enabling efficient signal routing and management. Designed for surface mount applications, it is available in a 28-QSOP package, facilitating compact board layouts. The QS3390QG operates from a single supply voltage range of 4.75V to 5.25V, making it suitable for a wide array of digital systems. Its operating temperature range of -40°C to 85°C ensures reliable performance in demanding environments. This component finds application in networking equipment, telecommunications infrastructure, and industrial control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-SSOP (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Circuit | 1 x 16:8 |
| Type | Multiplexer/Demultiplexer |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 4.75V ~ 5.25V |
| Independent Circuits | 1 |
| Current - Output High, Low | - |
| Voltage Supply Source | Single Supply |
| Supplier Device Package | 28-QSOP |
Request a Quote
Clients Also Buy
QS3253S1G8
IC MUX/DEMUX 2 X 4:1 16SOIC
74CBTLV3253PGG8
IC MUX/DEMUX 2 X 4:1 16TSSOP

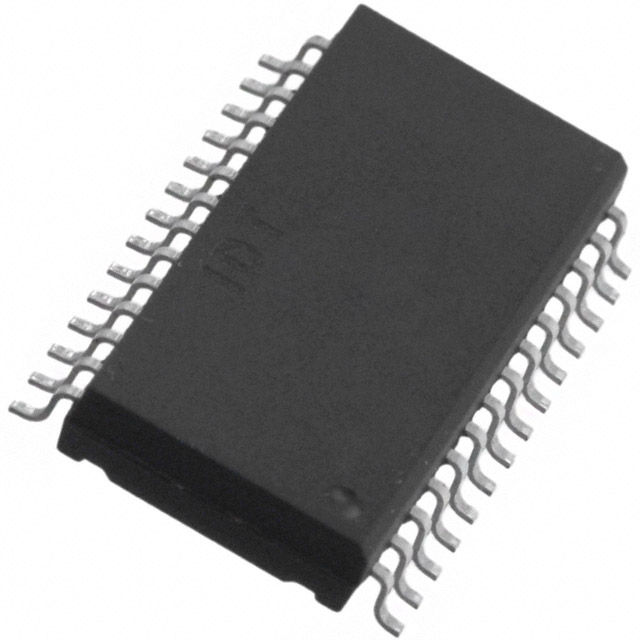

IDTQS3390SOG8
