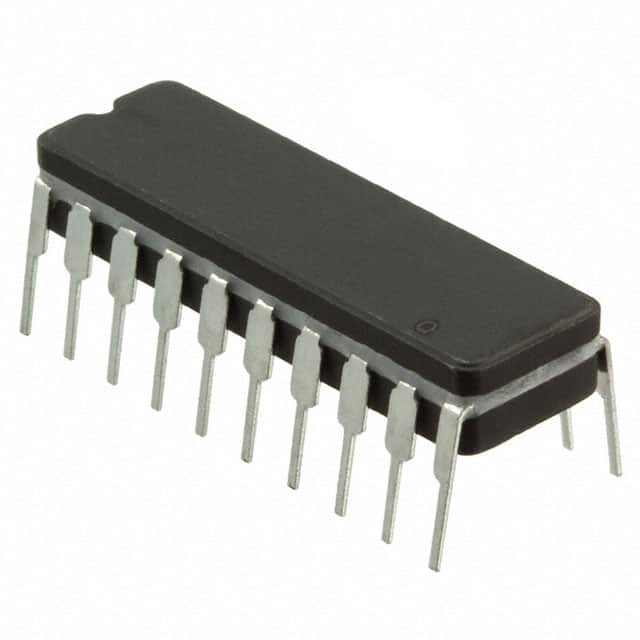

54FCT374TDB
IC FF D-TYPE SNGL 8BIT 20CDIPManufacturer: Renesas Electronics Corporation
Categories: Flip Flops
Quality Control: Learn More
Renesas Electronics Corporation's 54FCT374TDB is an 8-bit, single D-type flip-flop with tri-state outputs. This component features positive edge triggering and operates with a supply voltage range of 4.5V to 5.5V. The device offers a maximum propagation delay of 11ns at 5V and 50pF. Key electrical characteristics include output current capabilities of 15mA high and 48mA low, with a quiescent current of 1mA and an input capacitance of 10pF. It is housed in a 20-CDIP (0.300", 7.62mm) package, suitable for through-hole mounting. The operating temperature range is -55°C to 125°C. This component finds application in various industrial and commercial systems requiring high-speed data storage and buffering.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-CDIP (0.300"", 7.62mm) |
| Output Type | Tri-State |
| Mounting Type | Through Hole |
| Number of Elements | 1 |
| Function | Standard |
| Type | D-Type |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Iq) | 1 mA |
| Current - Output High, Low | 15mA, 48mA |
| Trigger Type | Positive Edge |
| Input Capacitance | 10 pF |
| Supplier Device Package | 20-CDIP |
| Max Propagation Delay @ V, Max CL | 11ns @ 5V, 50pF |
| Number of Bits per Element | 8 |
