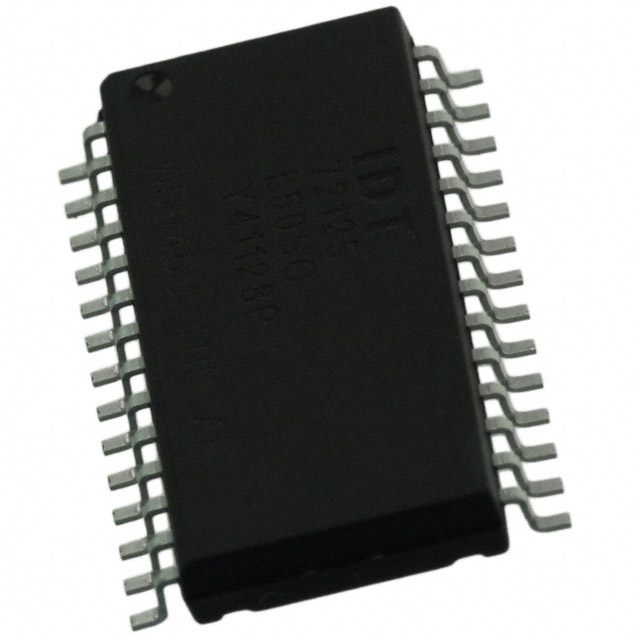

IDT72125L50SO
IC FIFO ASYNC 1KX16 50NS 28SOICManufacturer: Renesas Electronics Corporation
Categories: FIFOs Memory
Quality Control: Learn More
Renesas Electronics Corporation IDT72125L50SO is a 16K (1K x 16) asynchronous, uni-directional FIFO with a 50ns access time and a 40MHz data rate. This component supports depth and width expansion for increased memory capacity and bus width. It is housed in a 28-SOIC surface mount package and operates within a supply voltage range of 4.5V to 5.5V, with a maximum supply current of 100mA. The IDT72125L50SO is suitable for applications in telecommunications, networking, and industrial control systems. The operating temperature range is -40°C to 85°C.
Additional Information
Series: 7200RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-SOIC (0.345"", 8.77mm Width) |
| Mounting Type | Surface Mount |
| Function | Asynchronous |
| Memory Size | 16K (1K x 16) |
| Operating Temperature | -40°C ~ 85°C |
| Data Rate | 40MHz |
| Access Time | 50ns |
| Current - Supply (Max) | 100mA |
| Supplier Device Package | 28-SOIC |
| Bus Directional | Uni-Directional |
| Expansion Type | Depth, Width |
| Programmable Flags Support | No |
| Retransmit Capability | No |
| FWFT Support | No |
| Voltage - Supply | 4.5 V ~ 5.5 V |
| Programmable | Not Verified |
