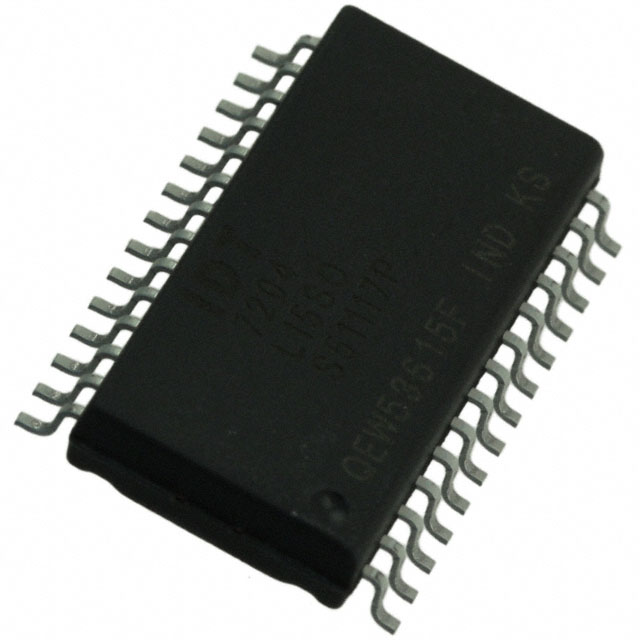

IDT7204L15SO
IC FIFO ASYNC 4KX9 15NS 28SOICManufacturer: Renesas Electronics Corporation
Categories: FIFOs Memory
Quality Control: Learn More
The Renesas Electronics Corporation IDT7204L15SO is a 4K x 9 asynchronous FIFO memory device from the 7200 series. This uni-directional component offers a memory size of 36K bits and supports a maximum data rate of 40MHz with an access time of 15ns. Designed for surface mount applications, it comes in a 28-SOIC package. Key features include retransmit capability and a supply voltage range of 4.5V to 5.5V, with a maximum supply current of 120mA. This device is suitable for applications requiring high-speed data buffering and synchronization in areas such as telecommunications, networking, and industrial control systems.
Additional Information
Series: 7200RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-SOIC (0.345"", 8.77mm Width) |
| Mounting Type | Surface Mount |
| Function | Asynchronous |
| Memory Size | 36K (4K x 9) |
| Operating Temperature | 0°C ~ 70°C |
| Data Rate | 40MHz |
| Access Time | 15ns |
| Current - Supply (Max) | 120mA |
| Supplier Device Package | 28-SOIC |
| Bus Directional | Uni-Directional |
| Expansion Type | Depth, Width |
| Programmable Flags Support | No |
| Retransmit Capability | Yes |
| FWFT Support | No |
| Voltage - Supply | 4.5 V ~ 5.5 V |
| Programmable | Not Verified |
