IDT7202LA35SO
IC FIFO ASYNC 1KX9 35NS 28SOICManufacturer: Renesas Electronics Corporation
Categories: FIFOs Memory
Quality Control: Learn More

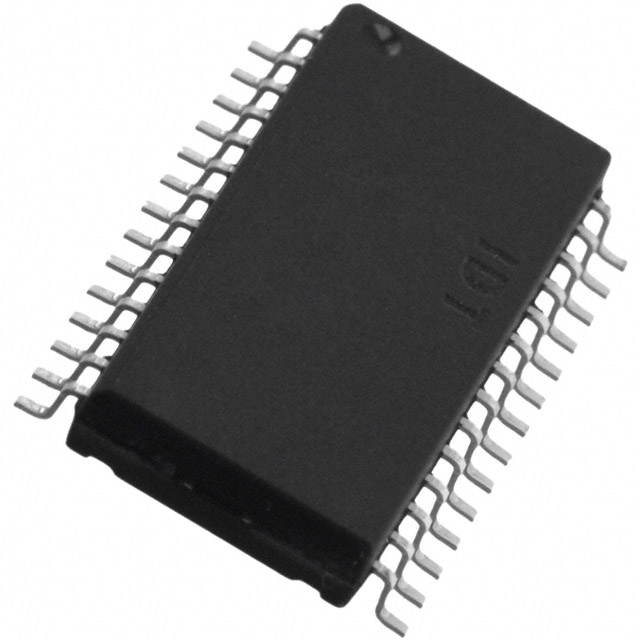

Renesas Electronics Corporation's IDT7202LA35SO is a 9K (1K x 9) asynchronous FIFO memory device from the 7200 series. This uni-directional component features a 35ns access time and supports a maximum data rate of 22.2MHz. Designed for surface mounting, it is housed in a 28-SOIC package. The device operates with a supply voltage range of 4.5V to 5.5V and has a maximum supply current of 80mA. Expansion capabilities include both depth and width. This component is suitable for applications in telecommunications, networking, and industrial automation. Retransmit capability is supported.
Additional Information
Series: 7200RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-SOIC (0.345"", 8.77mm Width) |
| Mounting Type | Surface Mount |
| Function | Asynchronous |
| Memory Size | 9K (1K x 9) |
| Operating Temperature | 0°C ~ 70°C |
| Data Rate | 22.2MHz |
| Access Time | 35ns |
| Current - Supply (Max) | 80mA |
| Supplier Device Package | 28-SOIC |
| Bus Directional | Uni-Directional |
| Expansion Type | Depth, Width |
| Programmable Flags Support | No |
| Retransmit Capability | Yes |
| FWFT Support | No |
| Voltage - Supply | 4.5 V ~ 5.5 V |
| Programmable | Not Verified |
