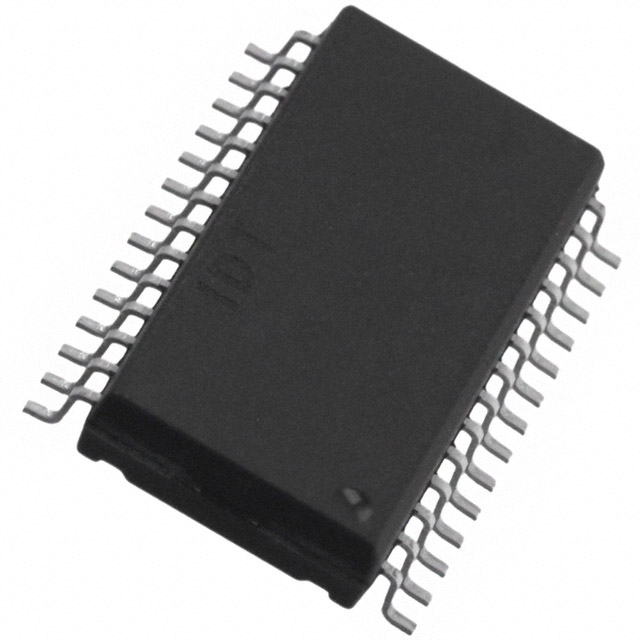

IDT7202LA25SOI
IC FIFO ASYNC 1KX9 25NS 28SOICManufacturer: Renesas Electronics Corporation
Categories: FIFOs Memory
Quality Control: Learn More
Renesas Electronics Corporation's IDT7202LA25SOI is a 1K x 9 asynchronous FIFO from the 7200 series, offering a 25ns access time. This uni-directional device operates at a 28.5MHz data rate and features retransmit capability. The 28-SOIC packaged component supports depth and width expansion. It is designed for applications requiring efficient data buffering and flow control, commonly found in telecommunications, data acquisition, and signal processing systems. The device operates within a 4.5V to 5.5V supply voltage range and has a maximum supply current of 80mA. Its surface mount configuration and operating temperature range of -40°C to 85°C make it suitable for a variety of demanding environments.
Additional Information
Series: 7200RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-SOIC (0.345"", 8.77mm Width) |
| Mounting Type | Surface Mount |
| Function | Asynchronous |
| Memory Size | 9K (1K x 9) |
| Operating Temperature | -40°C ~ 85°C |
| Data Rate | 28.5MHz |
| Access Time | 25ns |
| Current - Supply (Max) | 80mA |
| Supplier Device Package | 28-SOIC |
| Bus Directional | Uni-Directional |
| Expansion Type | Depth, Width |
| Programmable Flags Support | No |
| Retransmit Capability | Yes |
| FWFT Support | No |
| Voltage - Supply | 4.5 V ~ 5.5 V |
| Programmable | Not Verified |
