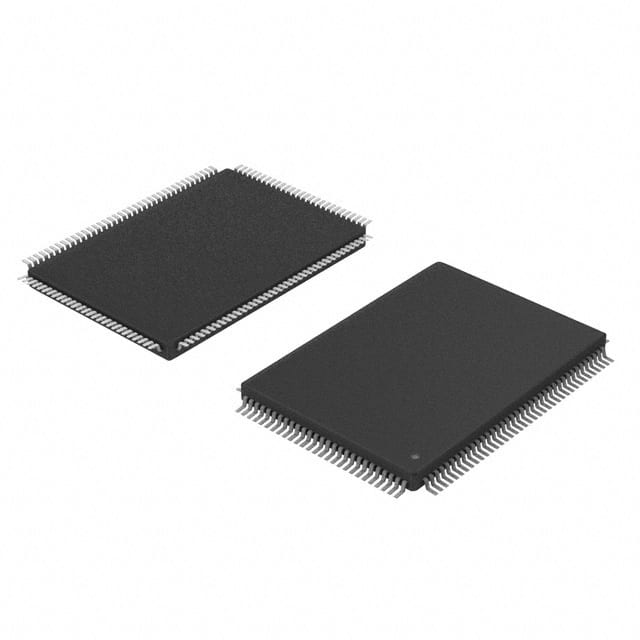

72V815L10PFG
IC FIFO SYNC 512X18X2 128TQFPManufacturer: Renesas Electronics Corporation
Categories: FIFOs Memory
Quality Control: Learn More
The Renesas Electronics Corporation 72V815L10PFG is a synchronous, bi-directional FIFO memory component from the 72V series. This device offers an 18K memory configuration, specifically 512 words by 18 bits with two independent channels. Operating at a data rate of 100MHz, it features an access time of 6.5ns. The 72V815L10PFG supports First-Word-Fall-Through (FWFT) functionality and includes programmable flags for status indication. Its expansion capabilities allow for increased depth and width. This component is housed in a 128-TQFP package with dimensions of 14x20mm and is designed for surface mounting. Typical applications include telecommunications, networking equipment, and high-speed data buffering systems. The device operates within a voltage range of 3V to 3.6V with a maximum supply current of 60mA.
Additional Information
Series: 72VRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 128-LQFP |
| Mounting Type | Surface Mount |
| Function | Synchronous |
| Memory Size | 18K (512 x 18 x 2) |
| Operating Temperature | 0°C ~ 70°C |
| Data Rate | 100MHz |
| Access Time | 6.5ns |
| Current - Supply (Max) | 60mA |
| Supplier Device Package | 128-TQFP (14x20) |
| Bus Directional | Bi-Directional |
| Expansion Type | Depth, Width |
| Programmable Flags Support | Yes |
| Retransmit Capability | No |
| FWFT Support | Yes |
| Voltage - Supply | 3 V ~ 3.6 V |
| Programmable | Not Verified |
