72V3680L6PFG8
IC FIFO SYNC 16KX36 4NS 128TQFPManufacturer: Renesas Electronics Corporation
Categories: FIFOs Memory
Quality Control: Learn More

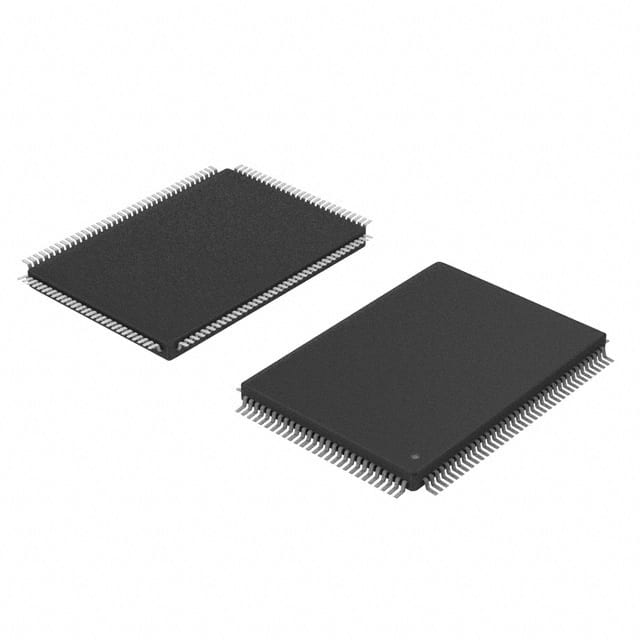

The Renesas Electronics Corporation 72V3680L6PFG8 is a synchronous, uni-directional FIFO featuring 576K of memory capacity organized as 16K words by 36 bits. This component operates at a 166MHz data rate with an access time of 4ns, supporting depth and width expansion. It includes First-Word-Fall-Through (FWFT) support and retransmit capability, along with programmable flags. The device is housed in a 128-TQFP (14x20) package and is designed for surface mount applications. Operating within a 3.15V to 3.45V supply range, its typical current consumption is under 40mA. This FIFO is suitable for high-speed data buffering applications across telecommunications, networking, and data acquisition systems.
Additional Information
Series: 72VRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 128-LQFP |
| Mounting Type | Surface Mount |
| Function | Synchronous |
| Memory Size | 576K (16K x 36) |
| Operating Temperature | 0°C ~ 70°C |
| Data Rate | 166MHz |
| Access Time | 4ns |
| Current - Supply (Max) | 40mA |
| Supplier Device Package | 128-TQFP (14x20) |
| Bus Directional | Uni-Directional |
| Expansion Type | Depth, Width |
| Programmable Flags Support | Yes |
| Retransmit Capability | Yes |
| FWFT Support | Yes |
| Voltage - Supply | 3.15 V ~ 3.45 V |
| Programmable | Not Verified |
