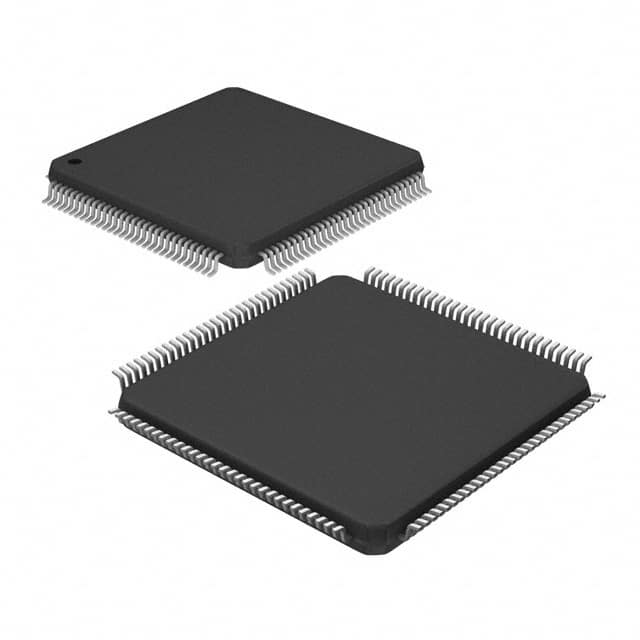

72V3631L15PFG
IC FIFO SYNC 512X36 10NS 120QFPManufacturer: Renesas Electronics Corporation
Categories: FIFOs Memory
Quality Control: Learn More
Renesas Electronics Corporation 72V Series Synchronous FIFO, part number 72V3631L15PFG. This bi-directional, synchronous FIFO offers an 18K memory configuration (512 words x 36 bits) with a data rate of 66.7MHz and an access time of 10ns. It features retransmit capability and programmable flags support, with First Word Fall Through (FWFT) functionality. Expansion is supported for both depth and width. The component operates from a 3V to 3.6V supply with a maximum supply current of 400µA. It is housed in a 120-TQFP (14x14) package, designed for surface mounting. Applications include telecommunications, networking, and high-speed data buffering.
Additional Information
Series: 72VRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 120-LQFP |
| Mounting Type | Surface Mount |
| Function | Synchronous |
| Memory Size | 18K (512 x 36) |
| Operating Temperature | 0°C ~ 70°C |
| Data Rate | 66.7MHz |
| Access Time | 10ns |
| Current - Supply (Max) | 400µA |
| Supplier Device Package | 120-TQFP (14x14) |
| Bus Directional | Bi-Directional |
| Expansion Type | Depth, Width |
| Programmable Flags Support | Yes |
| Retransmit Capability | Yes |
| FWFT Support | Yes |
| Voltage - Supply | 3 V ~ 3.6 V |
| Programmable | Not Verified |
