72V253L7-5BC
IC FIFO SYNC 8KX9 5NS 100CABGAManufacturer: Renesas Electronics Corporation
Categories: FIFOs Memory
Quality Control: Learn More

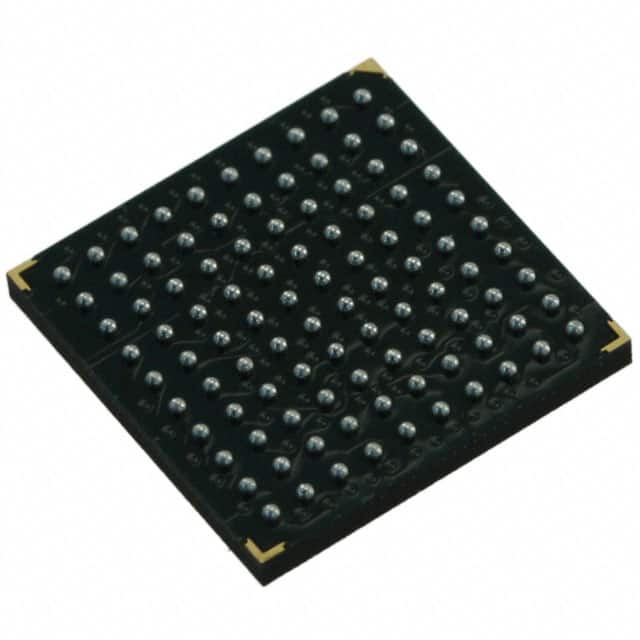

Renesas Electronics Corporation's 72V253L7-5BC is a synchronous FIFO offering 72K of memory, configurable as 4K x 18 or 8K x 9. This uni-directional device operates at a data rate of 133.3MHz with a 5ns access time, supporting both depth and width expansion. It features First Word Fall-Through (FWFT) operation and retransmit capability. The component is housed in a 100-CABGA (11x11) package, suitable for surface mounting. Typical applications span telecommunications, networking, and high-speed data buffering. The operating voltage range is 3.15V to 3.45V, with a maximum supply current of 35mA. This part is supplied in trays.
Additional Information
Series: 72VRoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 100-LBGA |
| Mounting Type | Surface Mount |
| Function | Synchronous |
| Memory Size | 72K (4K x 18)(8K x 9) |
| Operating Temperature | 0°C ~ 70°C |
| Data Rate | 133.3MHz |
| Access Time | 5ns |
| Current - Supply (Max) | 35mA |
| Supplier Device Package | 100-CABGA (11x11) |
| Bus Directional | Uni-Directional |
| Expansion Type | Depth, Width |
| Programmable Flags Support | Yes |
| Retransmit Capability | Yes |
| FWFT Support | Yes |
| Voltage - Supply | 3.15 V ~ 3.45 V |
| Programmable | Not Verified |
