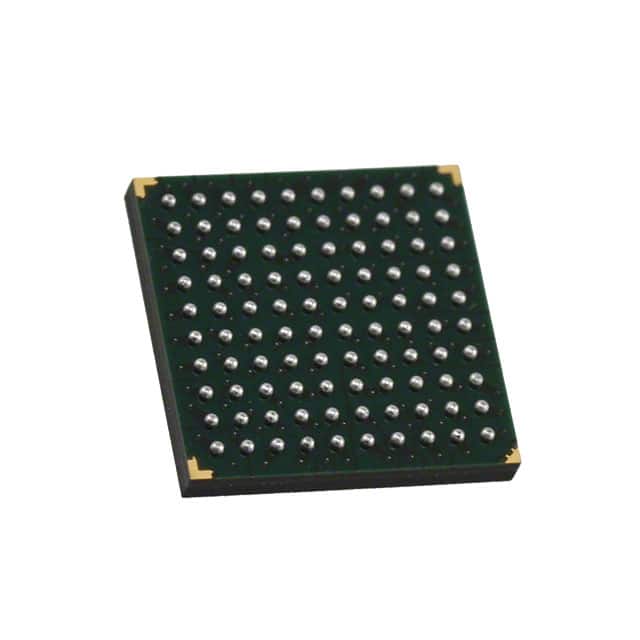

72V2113L7-5BC
IC FIFO SYNC 512KX9 100CABGAManufacturer: Renesas Electronics Corporation
Categories: FIFOs Memory
Quality Control: Learn More
The Renesas Electronics Corporation 72V2113L7-5BC is a synchronous, uni-directional FIFO memory designed for high-speed data buffering applications. This component offers a substantial memory size of 4.5M, configurable as either 256K x 18 or 512K x 9 bits. Operating at a data rate of up to 133.3MHz with an access time of 5ns, it supports retransmit capability and first-word-fall-through (FWFT) operation. The device is packaged in a 100-CABGA (11x11) and is suitable for surface mounting. Key features include depth and width expansion capabilities, and programmable flags support. This component is utilized in applications requiring efficient data flow management, such as telecommunications infrastructure, high-performance computing, and advanced networking equipment. It operates within a voltage supply range of 3.15V to 3.45V and has a maximum supply current of 35mA.
Additional Information
Series: 72VRoHS Status: RoHS non-compliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 100-LBGA |
| Mounting Type | Surface Mount |
| Function | Synchronous |
| Memory Size | 4.5M (256K x 18)(512K x 9) |
| Operating Temperature | 0°C ~ 70°C |
| Data Rate | 133.3MHz |
| Access Time | 5ns |
| Current - Supply (Max) | 35mA |
| Supplier Device Package | 100-CABGA (11x11) |
| Bus Directional | Uni-Directional |
| Expansion Type | Depth, Width |
| Programmable Flags Support | Yes |
| Retransmit Capability | Yes |
| FWFT Support | Yes |
| Voltage - Supply | 3.15 V ~ 3.45 V |
| Programmable | Not Verified |
