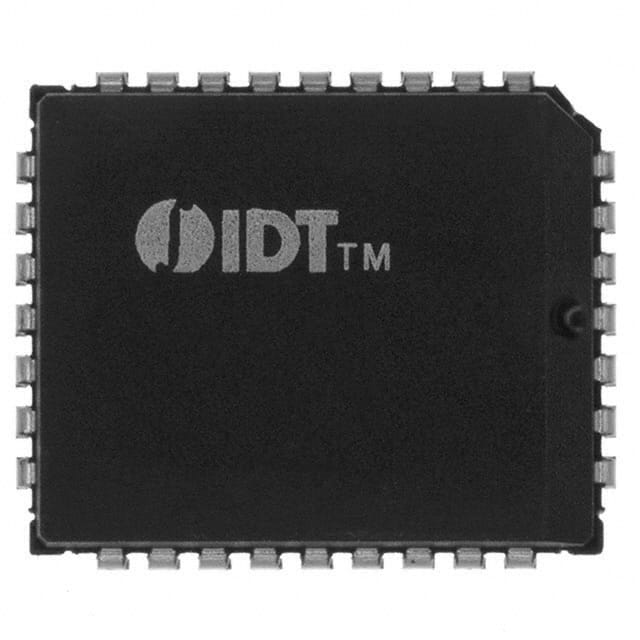

72V03L25J
IC FIFO ASYNC 2KX9 25NS 32PLCCManufacturer: Renesas Electronics Corporation
Categories: FIFOs Memory
Quality Control: Learn More
Renesas Electronics Corporation 72V series asynchronous FIFO memory, part number 72V03L25J. This uni-directional FIFO features an 18K (2K x 9) memory configuration with a maximum access time of 25ns and a data rate of 28.5MHz. It offers retransmit capability and supports expansion in both depth and width. The device operates from a 3V to 3.6V supply voltage with a maximum supply current of 60mA. Packaged in a 32-PLCC (J-Lead) surface mount configuration, this component is suitable for applications requiring high-speed data buffering and synchronization, including telecommunications and industrial control systems.
Additional Information
Series: 72VRoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 32-LCC (J-Lead) |
| Mounting Type | Surface Mount |
| Function | Asynchronous |
| Memory Size | 18K (2K x 9) |
| Operating Temperature | 0°C ~ 70°C |
| Data Rate | 28.5MHz |
| Access Time | 25ns |
| Current - Supply (Max) | 60mA |
| Supplier Device Package | 32-PLCC (14x11.46) |
| Bus Directional | Uni-Directional |
| Expansion Type | Depth, Width |
| Programmable Flags Support | No |
| Retransmit Capability | Yes |
| FWFT Support | No |
| Voltage - Supply | 3 V ~ 3.6 V |
| Programmable | Not Verified |
