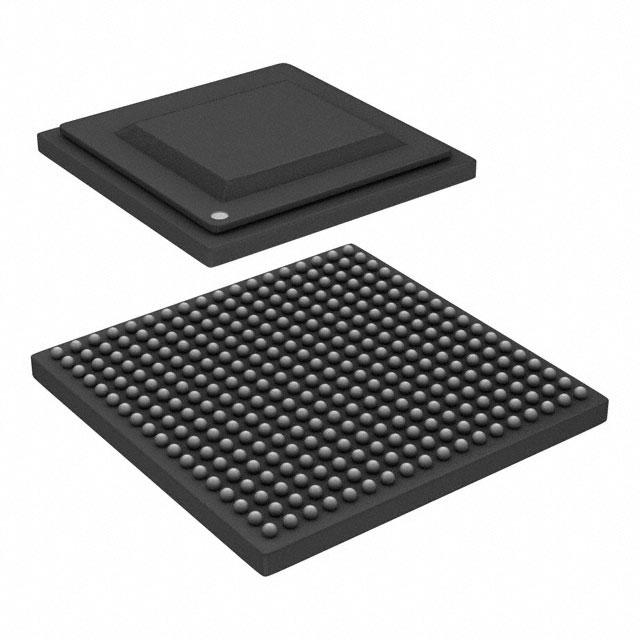

72T7295L4-4BBG
IC FIFO ASYNC/SYNC 32KX72 324BGAManufacturer: Renesas Electronics Corporation
Categories: FIFOs Memory
Quality Control: Learn More
Renesas Electronics Corporation 72T Series Asynchronous/Synchronous FIFO, part number 72T7295L4-4BBG. This uni-directional FIFO offers a memory size of 2.25M (32K x 72) with support for both asynchronous and synchronous operation. Featuring a data rate of up to 225MHz and access times as low as 3.4ns, this component is designed for high-speed data buffering. The 72T7295L4-4BBG supports First Word Fall Through (FWFT) and Retransmit capabilities, enhancing its utility in complex data flow management. Its 324-PBGA (19x19) package is surface mountable and operates within a supply voltage range of 2.375V to 2.625V, with a maximum supply current of 130mA. This device is commonly utilized in telecommunications, networking equipment, and high-performance computing applications.
Additional Information
Series: 72TRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 324-BGA |
| Mounting Type | Surface Mount |
| Function | Asynchronous, Synchronous |
| Memory Size | 2.25M (32K x 72) |
| Operating Temperature | 0°C ~ 70°C |
| Data Rate | 100MHz, 225MHz |
| Access Time | 8ns, 3.4ns |
| Current - Supply (Max) | 130mA |
| Supplier Device Package | 324-PBGA (19x19) |
| Bus Directional | Uni-Directional |
| Expansion Type | Depth, Width |
| Programmable Flags Support | Yes |
| Retransmit Capability | Yes |
| FWFT Support | Yes |
| Voltage - Supply | 2.375 V ~ 2.625 V |
| Programmable | Not Verified |
