72T18125L4-4BBG
IC FIFO ASYNC/SYNC 1MX9 240BGAManufacturer: Renesas Electronics Corporation
Categories: FIFOs Memory
Quality Control: Learn More

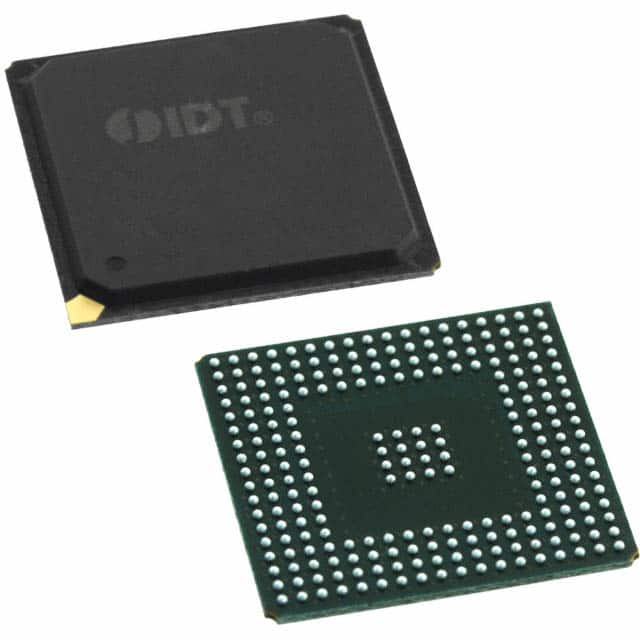

The Renesas Electronics Corporation 72T18125L4-4BBG is an asynchronous/synchronous FIFO memory component from the 72T series. This uni-directional device offers a memory size of 9 Megabits, configurable as 512K x 18 or 1M x 9. It supports data rates up to 225MHz with access times of 3.4ns and 8ns. Featuring Full-Word-First-In, First-Out (FWFT) support and retransmit capability, this component is designed for high-speed data buffering applications. The 72T18125L4-4BBG operates from a 2.375V to 2.625V supply, drawing a maximum of 70mA. It is housed in a 240-PBGA (19x19) package, suitable for surface mount applications and operates within a 0°C to 70°C temperature range. This component is commonly utilized in telecommunications, networking equipment, and high-performance computing systems.
Additional Information
Series: 72TRoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 240-BGA |
| Mounting Type | Surface Mount |
| Function | Asynchronous, Synchronous |
| Memory Size | 9M (512K x 18)(1M x 9) |
| Operating Temperature | 0°C ~ 70°C |
| Data Rate | 100MHz, 225MHz |
| Access Time | 8ns, 3.4ns |
| Current - Supply (Max) | 70mA |
| Supplier Device Package | 240-PBGA (19x19) |
| Bus Directional | Uni-Directional |
| Expansion Type | Depth, Width |
| Programmable Flags Support | Yes |
| Retransmit Capability | Yes |
| FWFT Support | Yes |
| Voltage - Supply | 2.375 V ~ 2.625 V |
| Programmable | Not Verified |
