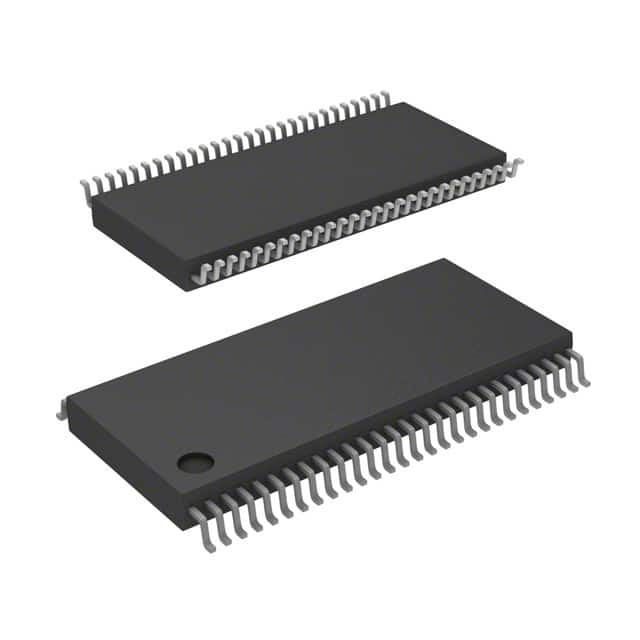

7283L15PAGI8
IC FIFO ASYNC 2KX9X2 56TSSOPManufacturer: Renesas Electronics Corporation
Categories: FIFOs Memory
Quality Control: Learn More
Renesas Electronics Corporation 7200 series asynchronous FIFO, part number 7283L15PAGI8. This Uni-Directional, asynchronous FIFO offers a memory configuration of 36K, specifically 2K words by 9 bits each, with dual channel support. Featuring an access time of 15ns and a maximum data rate of 40MHz, this component is designed for efficient data buffering and synchronization. The 7283L15PAGI8 operates within a supply voltage range of 4.5V to 5.5V and consumes a maximum of 150mA. Its capabilities include retransmit functionality. This device is housed in a 56-TSSOP package, suitable for surface mounting, and is supplied on tape and reel. Applications span industrial automation, telecommunications infrastructure, and high-speed data acquisition systems requiring robust memory management.
Additional Information
Series: 7200RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 56-TFSOP (0.240"", 6.10mm Width) |
| Mounting Type | Surface Mount |
| Function | Asynchronous |
| Memory Size | 36K (2K x 9 x 2) |
| Operating Temperature | -40°C ~ 85°C |
| Data Rate | 40MHz |
| Access Time | 15ns |
| Current - Supply (Max) | 150mA |
| Supplier Device Package | 56-TSSOP |
| Bus Directional | Uni-Directional |
| Expansion Type | Depth, Width |
| Programmable Flags Support | No |
| Retransmit Capability | Yes |
| FWFT Support | No |
| Voltage - Supply | 4.5 V ~ 5.5 V |
| Programmable | Not Verified |
