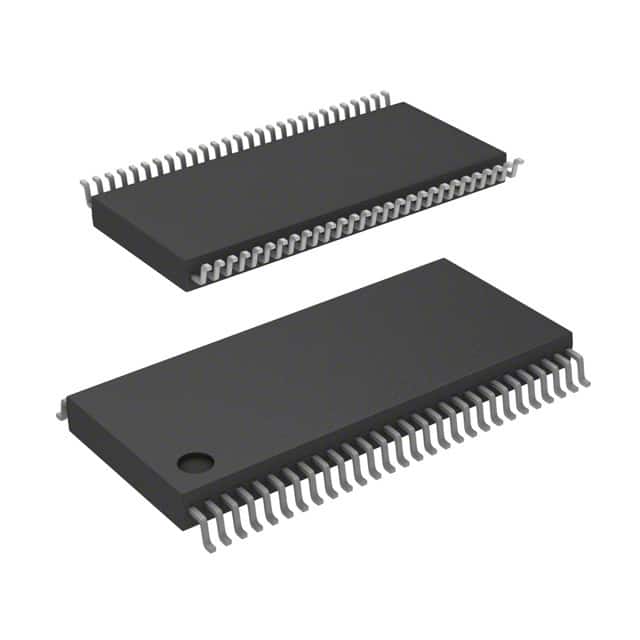

7283L15PAGI
IC FIFO ASYNC 2KX9X2 56TSSOPManufacturer: Renesas Electronics Corporation
Categories: FIFOs Memory
Quality Control: Learn More
Renesas Electronics Corporation 7200 Series asynchronous FIFO memory, part number 7283L15PAGI. This Uni-Directional FIFO offers a 36K memory configuration (2K x 9 x 2) with a maximum data rate of 40MHz and an access time of 15ns. Designed for surface mount applications, it is supplied in a 56-TSSOP package. Key features include retransmit capability and support for depth and width expansion. The device operates within a supply voltage range of 4.5V to 5.5V and has a maximum supply current of 150mA. This component is suitable for applications in telecommunications, networking, and data acquisition systems.
Additional Information
Series: 7200RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 56-TFSOP (0.240"", 6.10mm Width) |
| Mounting Type | Surface Mount |
| Function | Asynchronous |
| Memory Size | 36K (2K x 9 x 2) |
| Operating Temperature | -40°C ~ 85°C |
| Data Rate | 40MHz |
| Access Time | 15ns |
| Current - Supply (Max) | 150mA |
| Supplier Device Package | 56-TSSOP |
| Bus Directional | Uni-Directional |
| Expansion Type | Depth, Width |
| Programmable Flags Support | No |
| Retransmit Capability | Yes |
| FWFT Support | No |
| Voltage - Supply | 4.5 V ~ 5.5 V |
| Programmable | Not Verified |
