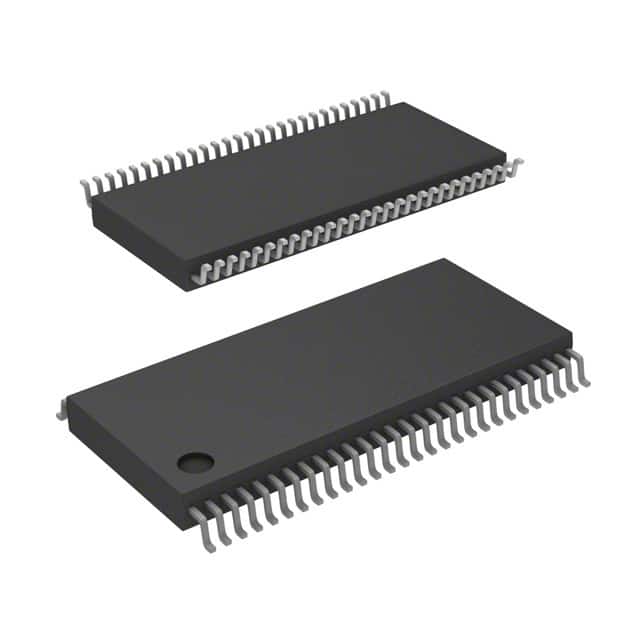

7280L12PAG
IC FIFO ASYNC 256X9X2 56TSSOPManufacturer: Renesas Electronics Corporation
Categories: FIFOs Memory
Quality Control: Learn More
Renesas Electronics Corporation 7200 series asynchronous FIFO, part number 7280L12PAG. This uni-directional FIFO offers a memory architecture of 256 words by 9 bits, providing a total capacity of 4.6K. It supports a maximum data rate of 50MHz with an access time of 12ns. Designed for surface mount applications, the device is housed in a 56-TSSOP package. The 7280L12PAG operates with a supply voltage range of 4.5V to 5.5V and has a maximum supply current of 125mA. This component is suitable for applications requiring data buffering and synchronization, including telecommunications and industrial control systems. The FIFO supports retransmit capability.
Additional Information
Series: 7200RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 56-TFSOP (0.240"", 6.10mm Width) |
| Mounting Type | Surface Mount |
| Function | Asynchronous |
| Memory Size | 4.6K (256 x 9 x 2) |
| Operating Temperature | 0°C ~ 70°C |
| Data Rate | 50MHz |
| Access Time | 12ns |
| Current - Supply (Max) | 125mA |
| Supplier Device Package | 56-TSSOP |
| Bus Directional | Uni-Directional |
| Expansion Type | Depth, Width |
| Programmable Flags Support | No |
| Retransmit Capability | Yes |
| FWFT Support | No |
| Voltage - Supply | 4.5 V ~ 5.5 V |
| Programmable | Not Verified |
