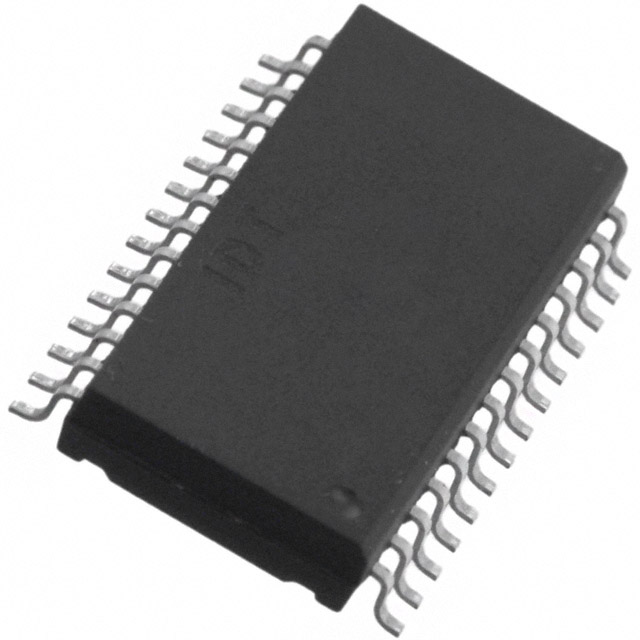

72125L25SOG
IC FIFO ASYNC 1KX16 25NS 28SOICManufacturer: Renesas Electronics Corporation
Categories: FIFOs Memory
Quality Control: Learn More
Renesas Electronics Corporation's 7200 series asynchronous FIFO, part number 72125L25SOG, offers a 1K x 16 memory configuration, totaling 16K bits. This uni-directional device operates at a 50MHz data rate with a rapid 25ns access time. Designed for surface mounting, it is housed in a 28-SOIC package. The component supports both depth and width expansion for increased capacity. Operating within a 4.5V to 5.5V supply range, it draws a maximum of 100mA. This FIFO is suitable for applications requiring high-speed data buffering and buffering in telecommunications, industrial automation, and computing systems. The 28-SOIC (0.345", 8.77mm Width) package is delivered in tube packaging.
Additional Information
Series: 7200RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-SOIC (0.345"", 8.77mm Width) |
| Mounting Type | Surface Mount |
| Function | Asynchronous |
| Memory Size | 16K (1K x 16) |
| Operating Temperature | -40°C ~ 85°C |
| Data Rate | 50MHz |
| Access Time | 25ns |
| Current - Supply (Max) | 100mA |
| Supplier Device Package | 28-SOIC |
| Bus Directional | Uni-Directional |
| Expansion Type | Depth, Width |
| Programmable Flags Support | No |
| Retransmit Capability | No |
| FWFT Support | No |
| Voltage - Supply | 4.5 V ~ 5.5 V |
| Programmable | Not Verified |
