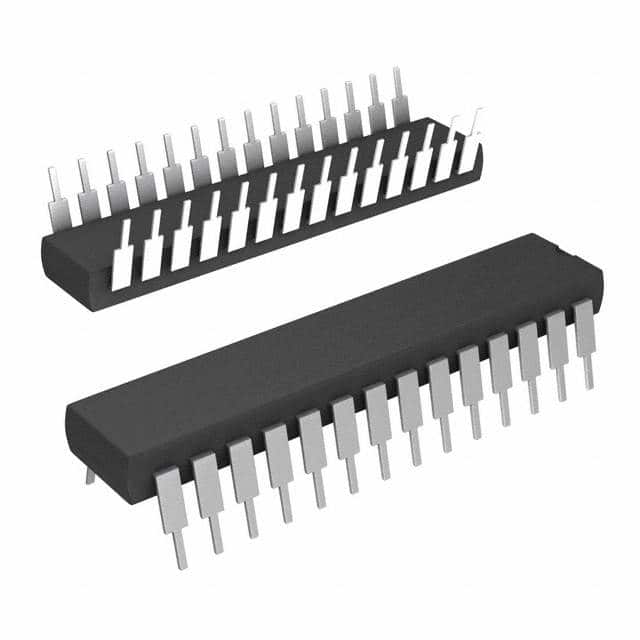

7206L15TPG
IC FIFO ASYNC 16KX9 15NS 28DIPManufacturer: Renesas Electronics Corporation
Categories: FIFOs Memory
Quality Control: Learn More
The Renesas Electronics Corporation 7200 series asynchronous FIFO, part number 7206L15TPG, offers 144K of memory configured as 16K words by 9 bits. This uni-directional device operates at a maximum data rate of 40MHz with an access time of 15ns. Designed for through-hole mounting, it features a 28-PDIP package. The 7206L15TPG supports retransmit capability and requires a supply voltage of 4.5V to 5.5V, drawing a maximum current of 120mA. This component is suitable for applications in networking, telecommunications, and industrial automation.
Additional Information
Series: 7200RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Function | Asynchronous |
| Memory Size | 144K (16K x 9) |
| Operating Temperature | 0°C ~ 70°C |
| Data Rate | 40MHz |
| Access Time | 15ns |
| Current - Supply (Max) | 120mA |
| Supplier Device Package | 28-PDIP |
| Bus Directional | Uni-Directional |
| Expansion Type | Depth, Width |
| Programmable Flags Support | No |
| Retransmit Capability | Yes |
| FWFT Support | No |
| Voltage - Supply | 4.5 V ~ 5.5 V |
| Programmable | Not Verified |
