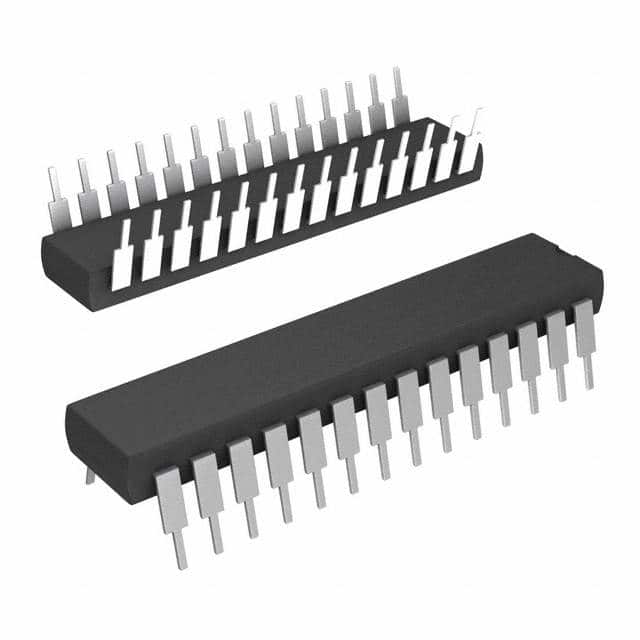

7205L15TPGI
IC FIFO ASYNC 8KX9 15NS 28DIPManufacturer: Renesas Electronics Corporation
Categories: FIFOs Memory
Quality Control: Learn More
Renesas Electronics Corporation's 7205L15TPGI, part of the 7200 series, is an asynchronous, uni-directional FIFO memory component. This 72K (8K x 9) device offers a 15ns access time and supports a 40MHz data rate. Designed for through-hole mounting in a 28-PDIP package, it operates within a voltage supply range of 4.5V to 5.5V, with a maximum supply current of 120mA. The 7205L15TPGI features retransmit capability and is suitable for applications requiring high-speed data buffering and synchronization in various industrial and telecommunications systems. Its expansion capabilities allow for both depth and width scaling.
Additional Information
Series: 7200RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Last Time BuyPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Function | Asynchronous |
| Memory Size | 72K (8K x 9) |
| Operating Temperature | -40°C ~ 85°C |
| Data Rate | 40MHz |
| Access Time | 15ns |
| Current - Supply (Max) | 120mA |
| Supplier Device Package | 28-PDIP |
| Bus Directional | Uni-Directional |
| Expansion Type | Depth, Width |
| Programmable Flags Support | No |
| Retransmit Capability | Yes |
| FWFT Support | No |
| Voltage - Supply | 4.5 V ~ 5.5 V |
| Programmable | Not Verified |
