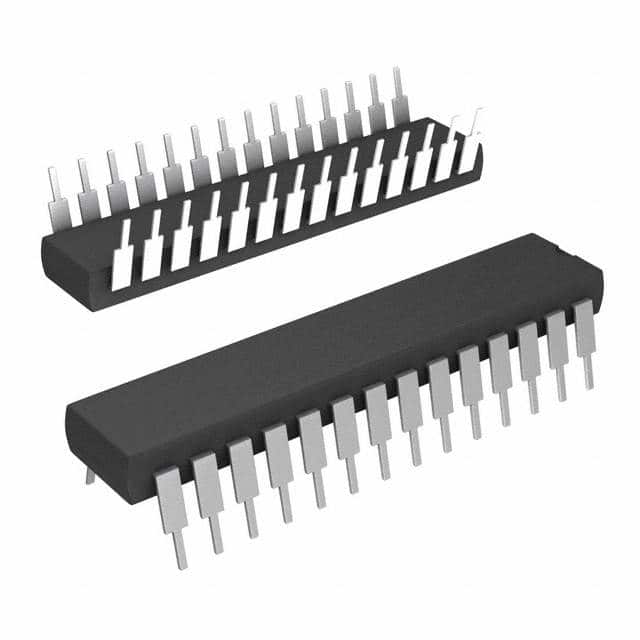

7204L15TPGI
IC FIFO ASYNC 4KX9 15NS 28DIPManufacturer: Renesas Electronics Corporation
Categories: FIFOs Memory
Quality Control: Learn More
Renesas Electronics Corporation's 7200 Series asynchronous FIFO, part number 7204L15TPGI, offers a 36K (4K x 9) memory size with a 15ns access time and a 40MHz data rate. This uni-directional component supports depth and width expansion and features retransmit capability. It operates within a 4.5V to 5.5V supply voltage range and has a maximum supply current of 120mA. The 7204L15TPGI is housed in a 28-PDIP package suitable for through-hole mounting and operates across an industrial temperature range of -40°C to 85°C. This device finds application in data buffering and buffering for high-speed data acquisition and networking systems.
Additional Information
Series: 7200RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Function | Asynchronous |
| Memory Size | 36K (4K x 9) |
| Operating Temperature | -40°C ~ 85°C |
| Data Rate | 40MHz |
| Access Time | 15ns |
| Current - Supply (Max) | 120mA |
| Supplier Device Package | 28-PDIP |
| Bus Directional | Uni-Directional |
| Expansion Type | Depth, Width |
| Programmable Flags Support | No |
| Retransmit Capability | Yes |
| FWFT Support | No |
| Voltage - Supply | 4.5 V ~ 5.5 V |
| Programmable | Not Verified |
