7204L12SOG8
IC FIFO ASYNC 4KX9 12NS 28SOICManufacturer: Renesas Electronics Corporation
Categories: FIFOs Memory
Quality Control: Learn More

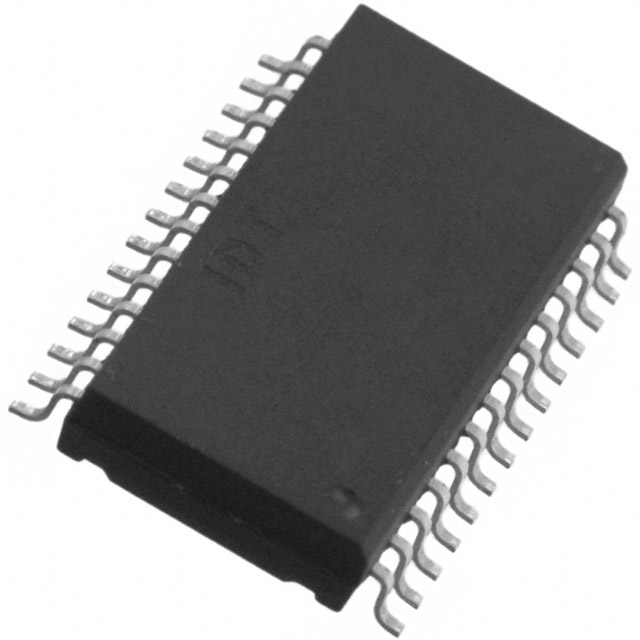

Renesas Electronics Corporation's 7200 series asynchronous FIFO, part number 7204L12SOG8, offers a 36K (4K x 9) memory capacity with a uni-directional data flow. This component features a 12ns access time and supports a maximum data rate of 50MHz. The 7204L12SOG8 is designed for surface mounting within a 28-SOIC package, measuring 8.77mm in width. It operates within a supply voltage range of 4.5V to 5.5V and has a maximum supply current of 120mA. Retransmit capability is supported, and it is suitable for environments operating between 0°C and 70°C. This device finds application in various data buffering and synchronization tasks across industrial and communication systems.
Additional Information
Series: 7200RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-SOIC (0.345"", 8.77mm Width) |
| Mounting Type | Surface Mount |
| Function | Asynchronous |
| Memory Size | 36K (4K x 9) |
| Operating Temperature | 0°C ~ 70°C |
| Data Rate | 50MHz |
| Access Time | 12ns |
| Current - Supply (Max) | 120mA |
| Supplier Device Package | 28-SOIC |
| Bus Directional | Uni-Directional |
| Expansion Type | Depth, Width |
| Programmable Flags Support | No |
| Retransmit Capability | Yes |
| FWFT Support | No |
| Voltage - Supply | 4.5 V ~ 5.5 V |
| Programmable | Not Verified |
