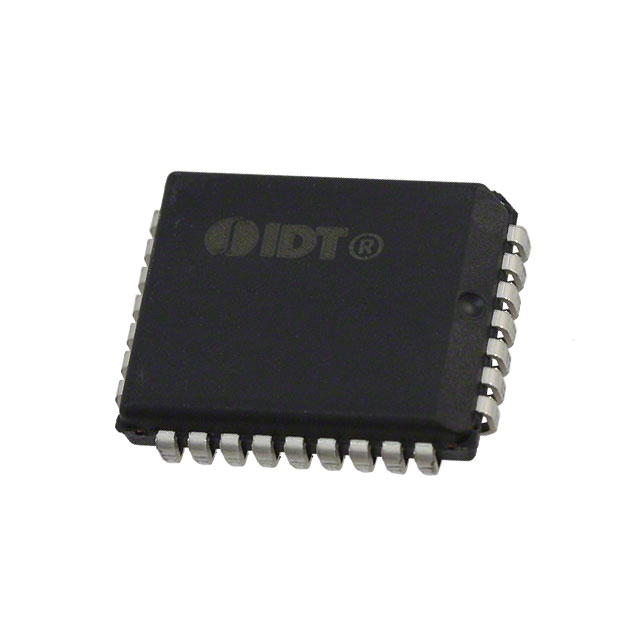

7203L35J
IC FIFO ASYNC 2KX9 35NS 32PLCCManufacturer: Renesas Electronics Corporation
Categories: FIFOs Memory
Quality Control: Learn More
The Renesas Electronics Corporation 7200 series asynchronous FIFO, part number 7203L35J, offers an 18K (2K x 9) memory configuration with a 35ns access time. This uni-directional component operates at a maximum data rate of 22.2MHz and supports depth and width expansion. Designed for surface mounting in a 32-PLCC (J-Lead) package, it requires a supply voltage of 4.5V to 5.5V and has a maximum supply current of 120mA. The 7203L35J features retransmit capability and is suitable for applications in telecommunications, networking, and industrial control systems. It operates within a temperature range of 0°C to 70°C.
Additional Information
Series: 7200RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 32-LCC (J-Lead) |
| Mounting Type | Surface Mount |
| Function | Asynchronous |
| Memory Size | 18K (2K x 9) |
| Operating Temperature | 0°C ~ 70°C |
| Data Rate | 22.2MHz |
| Access Time | 35ns |
| Current - Supply (Max) | 120mA |
| Supplier Device Package | 32-PLCC (14x11.46) |
| Bus Directional | Uni-Directional |
| Expansion Type | Depth, Width |
| Programmable Flags Support | No |
| Retransmit Capability | Yes |
| FWFT Support | No |
| Voltage - Supply | 4.5 V ~ 5.5 V |
| Programmable | Not Verified |
