7203L25J
IC FIFO ASYNC 2KX9 25NS 32PLCCManufacturer: Renesas Electronics Corporation
Categories: FIFOs Memory
Quality Control: Learn More

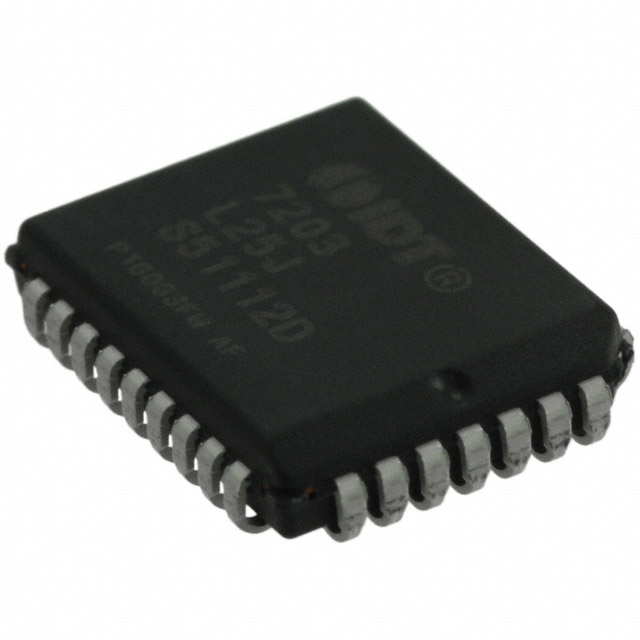

Renesas Electronics Corporation 7200 series asynchronous FIFO, part number 7203L25J. This uni-directional FIFO offers an 18K memory configuration (2K x 9) with a 25ns access time and a maximum data rate of 28.5MHz. Designed for surface mount applications, it is supplied in a 32-PLCC (J-Lead) package. The device operates within a voltage range of 4.5 V to 5.5 V and has a maximum supply current of 120mA. Expansion capabilities include both depth and width. This component is suitable for applications requiring high-speed data buffering and synchronization, commonly found in telecommunications, networking equipment, and industrial control systems.
Additional Information
Series: 7200RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 32-LCC (J-Lead) |
| Mounting Type | Surface Mount |
| Function | Asynchronous |
| Memory Size | 18K (2K x 9) |
| Operating Temperature | 0°C ~ 70°C |
| Data Rate | 28.5MHz |
| Access Time | 25ns |
| Current - Supply (Max) | 120mA |
| Supplier Device Package | 32-PLCC (14x11.46) |
| Bus Directional | Uni-Directional |
| Expansion Type | Depth, Width |
| Programmable Flags Support | No |
| Retransmit Capability | Yes |
| FWFT Support | No |
| Voltage - Supply | 4.5 V ~ 5.5 V |
| Programmable | Not Verified |
