7202LA15SOGI8

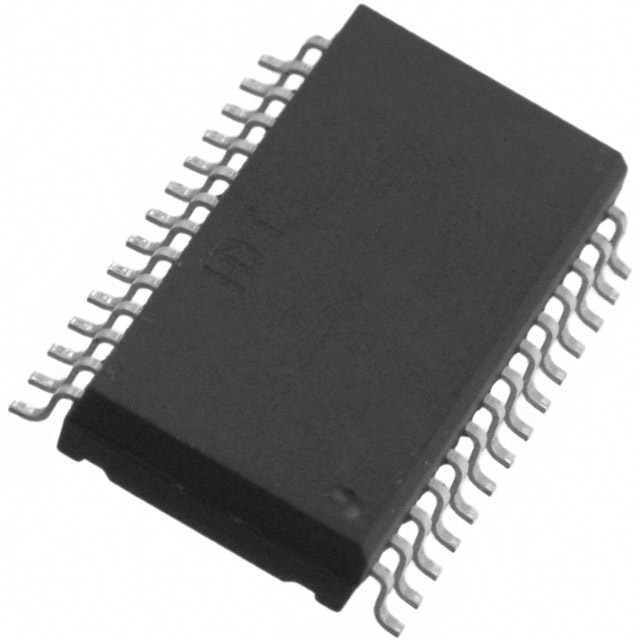

IC FIFO ASYNC 1KX9 15NS 28SOICManufacturer: Renesas Electronics Corporation
Categories: FIFOs Memory
Quality Control: Learn More
Renesas Electronics Corporation's 7200 series asynchronous FIFO, part number 7202LA15SOGI8, offers a 9K (1K x 9) memory size with a Uni-Directional bus. This device operates at a maximum frequency of 40MHz with an access time of 15ns. It features retransmit capability and is supplied in a 28-SOIC package for surface mounting. The operating voltage range is 4.5V to 5.5V, with a maximum supply current of 80mA. This component is suitable for applications requiring high-speed data buffering in telecommunications, networking, and industrial control systems. Its expansion capabilities allow for both depth and width expansion.
Additional Information
Series: 7200RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-SOIC (0.345"", 8.77mm Width) |
| Mounting Type | Surface Mount |
| Function | Asynchronous |
| Memory Size | 9K (1K x 9) |
| Operating Temperature | -40°C ~ 85°C |
| Data Rate | 40MHz |
| Access Time | 15ns |
| Current - Supply (Max) | 80mA |
| Supplier Device Package | 28-SOIC |
| Bus Directional | Uni-Directional |
| Expansion Type | Depth, Width |
| Programmable Flags Support | No |
| Retransmit Capability | Yes |
| FWFT Support | No |
| Voltage - Supply | 4.5 V ~ 5.5 V |
| Programmable | Not Verified |
