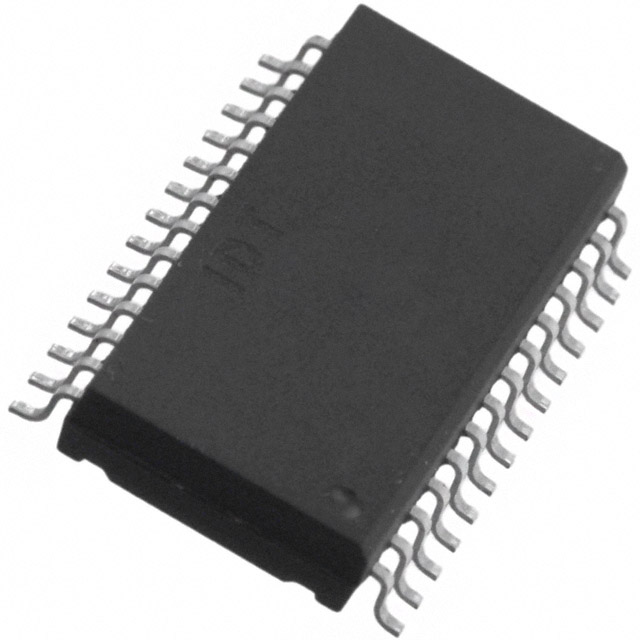

7202LA12SOG8
IC FIFO ASYNC 1KX9 12NS 28SOICManufacturer: Renesas Electronics Corporation
Categories: FIFOs Memory
Quality Control: Learn More
Renesas Electronics Corporation's 7200 series asynchronous FIFO, part number 7202LA12SOG8, offers a 9K memory organization (1K x 9) with a 12ns access time and a 50MHz data rate. This uni-directional device supports retransmit capability and is packaged in a 28-SOIC (0.345", 8.77mm width) for surface mount applications. Operating with a supply voltage range of 4.5V to 5.5V, it draws a maximum of 80mA. The FIFO is designed for applications requiring high-speed data buffering and synchronization, commonly found in telecommunications, networking equipment, and industrial control systems. Expansion is supported in both depth and width.
Additional Information
Series: 7200RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-SOIC (0.345"", 8.77mm Width) |
| Mounting Type | Surface Mount |
| Function | Asynchronous |
| Memory Size | 9K (1K x 9) |
| Operating Temperature | 0°C ~ 70°C |
| Data Rate | 50MHz |
| Access Time | 12ns |
| Current - Supply (Max) | 80mA |
| Supplier Device Package | 28-SOIC |
| Bus Directional | Uni-Directional |
| Expansion Type | Depth, Width |
| Programmable Flags Support | No |
| Retransmit Capability | Yes |
| FWFT Support | No |
| Voltage - Supply | 4.5 V ~ 5.5 V |
| Programmable | Not Verified |
