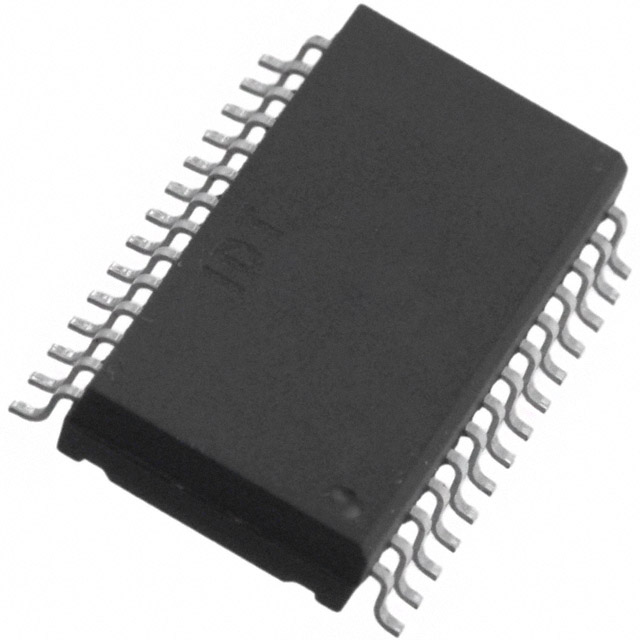

7201LA15SOGI
IC FIFO ASYNC 512X9 15NS 28SOICManufacturer: Renesas Electronics Corporation
Categories: FIFOs Memory
Quality Control: Learn More
Renesas Electronics Corporation 7200 Series asynchronous FIFO memory, part number 7201LA15SOGI. This uni-directional device offers a memory size of 4.5K (512 x 9) with a maximum clock frequency of 40MHz and an access time of 15ns. The 7201LA15SOGI operates from a 4.5V to 5.5V supply, with a maximum supply current of 80mA. Expansion is supported for both depth and width. This component is designed for surface mount applications and comes in a 28-SOIC package. The operating temperature range is -40°C to 85°C. Applications for this device include buffering and rate matching in telecommunications, networking, and industrial control systems.
Additional Information
Series: 7200RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-SOIC (0.345"", 8.77mm Width) |
| Mounting Type | Surface Mount |
| Function | Asynchronous |
| Memory Size | 4.5K (512 x 9) |
| Operating Temperature | -40°C ~ 85°C |
| Data Rate | 40MHz |
| Access Time | 15ns |
| Current - Supply (Max) | 80mA |
| Supplier Device Package | 28-SOIC |
| Bus Directional | Uni-Directional |
| Expansion Type | Depth, Width |
| Programmable Flags Support | No |
| Retransmit Capability | Yes |
| FWFT Support | No |
| Voltage - Supply | 4.5 V ~ 5.5 V |
| Programmable | Not Verified |
