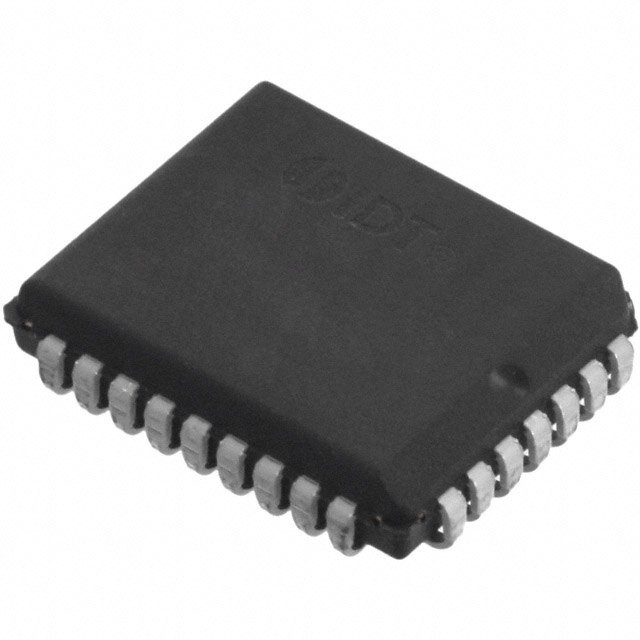

7200L25JI
IC FIFO ASYNC 256X9 25NS 32PLCCManufacturer: Renesas Electronics Corporation
Categories: FIFOs Memory
Quality Control: Learn More
This Renesas Electronics Corporation component, part of the 7200 series, is an asynchronous FIFO memory with a 256 x 9 bit configuration, offering a total memory size of 2.25K. The 7200L25JI provides a 25ns access time and supports a maximum data rate of 28.5MHz. This uni-directional device features retransmit capability and is housed in a 32-PLCC package. Operating within a voltage range of 4.5V to 5.5V, it has a maximum supply current of 80mA and is designed for surface mount installation. The memory expansion capabilities include both depth and width. This component is commonly utilized in telecommunications and networking infrastructure.
Additional Information
Series: 7200RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 32-LCC (J-Lead) |
| Mounting Type | Surface Mount |
| Function | Asynchronous |
| Memory Size | 2.25K (256 x 9) |
| Operating Temperature | -40°C ~ 85°C |
| Data Rate | 28.5MHz |
| Access Time | 25ns |
| Current - Supply (Max) | 80mA |
| Supplier Device Package | 32-PLCC (14x11.46) |
| Bus Directional | Uni-Directional |
| Expansion Type | Depth, Width |
| Programmable Flags Support | No |
| Retransmit Capability | Yes |
| FWFT Support | No |
| Voltage - Supply | 4.5 V ~ 5.5 V |
| Programmable | Not Verified |
