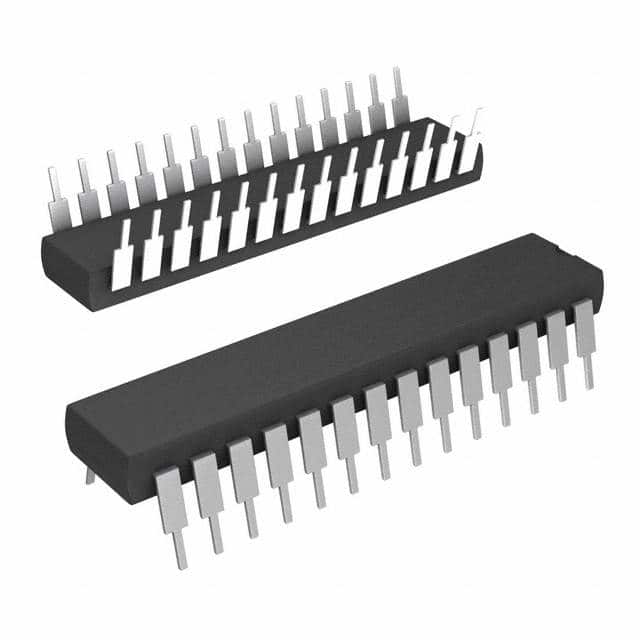

7200L15TPGI
IC FIFO ASYNC 256X9 15NS 28DIPManufacturer: Renesas Electronics Corporation
Categories: FIFOs Memory
Quality Control: Learn More
Renesas Electronics Corporation's 7200 series asynchronous FIFO, part number 7200L15TPGI, offers a 256 x 9 bit memory configuration with a total capacity of 2.25K. This uni-directional device operates at speeds up to 40MHz, featuring a fast 15ns access time. Designed for through-hole mounting, it is housed in a standard 28-DIP package. The 7200L15TPGI supports retransmit capabilities and is suitable for applications requiring buffering and synchronization between asynchronous clock domains, commonly found in telecommunications and industrial control systems. It operates within a voltage range of 4.5V to 5.5V and has a maximum supply current of 80mA, with an operating temperature range of -40°C to 85°C.
Additional Information
Series: 7200RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Function | Asynchronous |
| Memory Size | 2.25K (256 x 9) |
| Operating Temperature | -40°C ~ 85°C |
| Data Rate | 40MHz |
| Access Time | 15ns |
| Current - Supply (Max) | 80mA |
| Supplier Device Package | 28-PDIP |
| Bus Directional | Uni-Directional |
| Expansion Type | Depth, Width |
| Programmable Flags Support | No |
| Retransmit Capability | Yes |
| FWFT Support | No |
| Voltage - Supply | 4.5 V ~ 5.5 V |
| Programmable | Not Verified |
