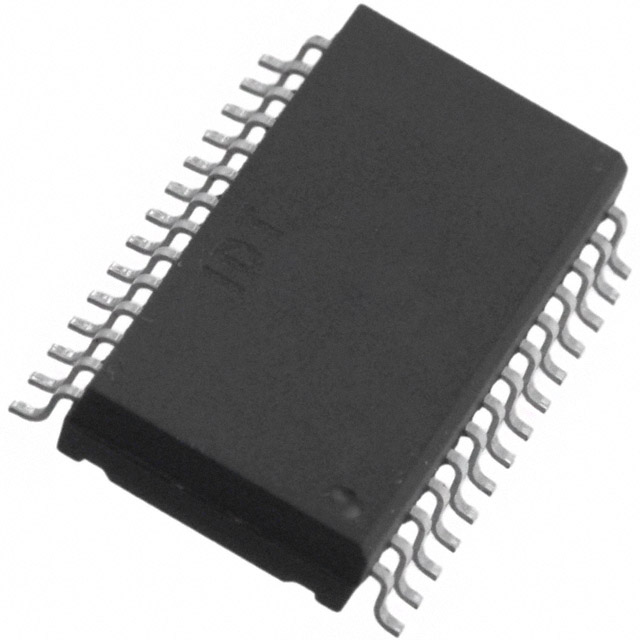

7200L15SOGI
IC FIFO ASYNC 256X9 15NS 28SOICManufacturer: Renesas Electronics Corporation
Categories: FIFOs Memory
Quality Control: Learn More
The Renesas Electronics Corporation 7200 Series asynchronous FIFO, part number 7200L15SOGI, offers a 2.25K (256 x 9) memory configuration with a 15ns access time and a 40MHz data rate. This uni-directional component supports depth and width expansion and features retransmit capability. Operating from a 4.5V to 5.5V supply, it consumes a maximum of 80mA. The device is housed in a 28-SOIC (0.345", 8.77mm width) surface mount package and operates within a temperature range of -40°C to 85°C. Its asynchronous function and FIFO memory architecture are suitable for data buffering applications in telecommunications, networking equipment, and industrial control systems.
Additional Information
Series: 7200RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-SOIC (0.345"", 8.77mm Width) |
| Mounting Type | Surface Mount |
| Function | Asynchronous |
| Memory Size | 2.25K (256 x 9) |
| Operating Temperature | -40°C ~ 85°C |
| Data Rate | 40MHz |
| Access Time | 15ns |
| Current - Supply (Max) | 80mA |
| Supplier Device Package | 28-SOIC |
| Bus Directional | Uni-Directional |
| Expansion Type | Depth, Width |
| Programmable Flags Support | No |
| Retransmit Capability | Yes |
| FWFT Support | No |
| Voltage - Supply | 4.5 V ~ 5.5 V |
| Programmable | Not Verified |
