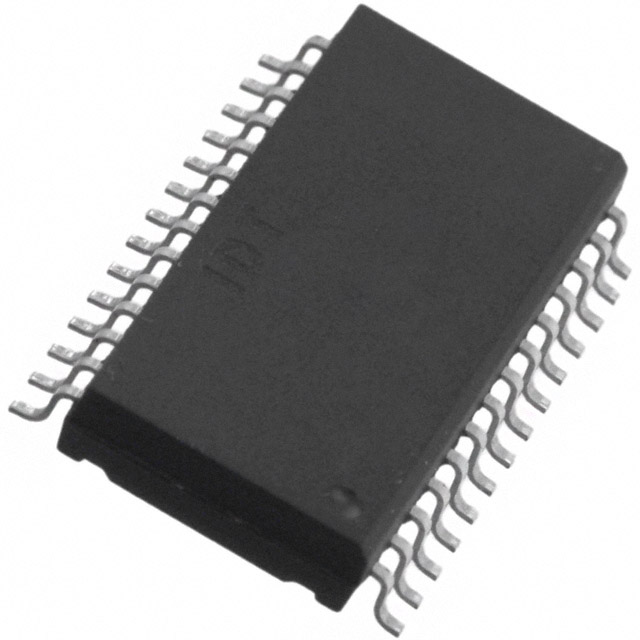

7200L12SOG
IC FIFO ASYNC 256X9 12NS 28SOICManufacturer: Renesas Electronics Corporation
Categories: FIFOs Memory
Quality Control: Learn More
Renesas Electronics Corporation's 7200 series asynchronous FIFO, part number 7200L12SOG, offers a 2.25K (256 x 9) memory configuration with a 12ns access time and a 50MHz data rate. This uni-directional buffer supports depth and width expansion, operating from 4.5V to 5.5V with a maximum supply current of 80mA. The 7200L12SOG is housed in a 28-SOIC package suitable for surface mounting and operates within a temperature range of 0°C to 70°C. It features retransmit capability and is designed for applications requiring high-speed data buffering, commonly found in telecommunications infrastructure, networking equipment, and industrial control systems.
Additional Information
Series: 7200RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-SOIC (0.345"", 8.77mm Width) |
| Mounting Type | Surface Mount |
| Function | Asynchronous |
| Memory Size | 2.25K (256 x 9) |
| Operating Temperature | 0°C ~ 70°C |
| Data Rate | 50MHz |
| Access Time | 12ns |
| Current - Supply (Max) | 80mA |
| Supplier Device Package | 28-SOIC |
| Bus Directional | Uni-Directional |
| Expansion Type | Depth, Width |
| Programmable Flags Support | No |
| Retransmit Capability | Yes |
| FWFT Support | No |
| Voltage - Supply | 4.5 V ~ 5.5 V |
| Programmable | Not Verified |
