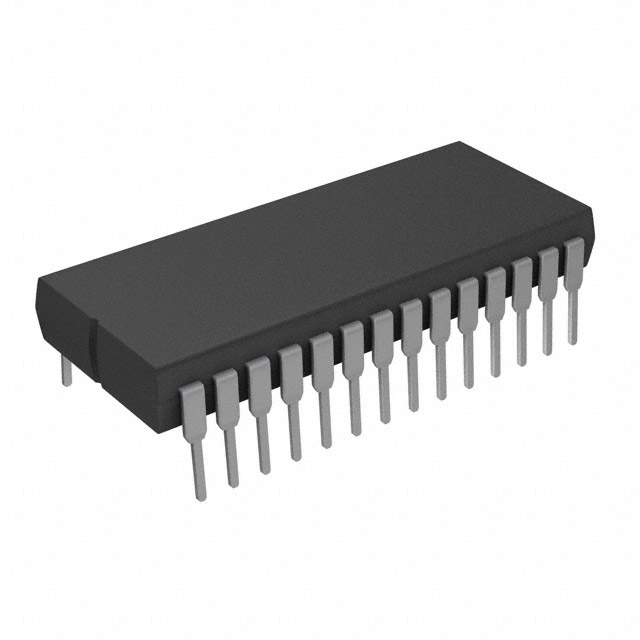

5962-8956804XA
IC FIFO ASYNC 4KX9 50NS 28CDIPManufacturer: Renesas Electronics Corporation
Categories: FIFOs Memory
Quality Control: Learn More
Renesas Electronics Corporation's 7200 series asynchronous FIFO, part number 5962-8956804XA, offers a 4K x 9 memory configuration with a 50ns access time. This uni-directional component operates at a 15MHz data rate, supporting retries. The 28-CDIP package is designed for through-hole mounting. Key specifications include a maximum supply current of 150mA and a voltage range of 4.5V to 5.5V. This device is suitable for applications requiring high-speed data buffering and buffering in areas such as telecommunications and industrial control systems. The expansion capabilities support both depth and width configurations.
Additional Information
Series: 7200RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-CDIP (0.600"", 15.24mm) |
| Mounting Type | Through Hole |
| Function | Asynchronous |
| Memory Size | 4K x 9 |
| Operating Temperature | -55°C ~ 125°C |
| Data Rate | 15MHz |
| Access Time | 50ns |
| Current - Supply (Max) | 150mA |
| Supplier Device Package | 28-CDIP |
| Bus Directional | Uni-Directional |
| Expansion Type | Depth, Width |
| Programmable Flags Support | No |
| Retransmit Capability | Yes |
| FWFT Support | No |
| Voltage - Supply | 4.5 V ~ 5.5 V |
