IDT74ALVCHS162830DFG8
IC ADDRESS DRIVER 3.6V 80TVSOPManufacturer: Renesas Electronics Corporation
Categories: Buffers, Drivers, Receivers, Transceivers
Quality Control: Learn More
Renesas Electronics Corporation's IDT74ALVCHS162830DFG8 is a high-performance address driver from the 74ALVCHS series. This 80-TVSOP packaged device features a single element with a 1:2 bit per element configuration, offering 3-state outputs. Designed for operation within a 2.7V to 3.6V supply voltage range, it delivers 12mA current for both high and low output states. The surface mount component is supplied on tape and reel and operates across an industrial temperature range of -40°C to 85°C. Its robust design makes it suitable for applications in computing, industrial automation, and telecommunications infrastructure.
Additional Information
Series: 74ALVCHSRoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 80-TFSOP (0.240"", 6.10mm Width) |
| Output Type | 3-State |
| Mounting Type | Surface Mount |
| Number of Elements | 1 |
| Logic Type | Address Driver |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 2.7V ~ 3.6V |
| Input Type | - |
| Number of Bits per Element | 1:2 |
| Current - Output High, Low | 12mA, 12mA |
| Supplier Device Package | 80-TVSOP |
Request a Quote
Clients Also Buy

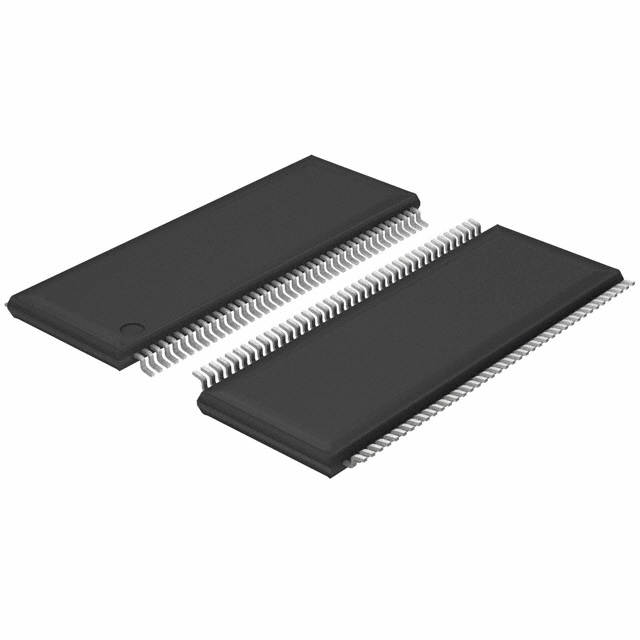

74ALVCHS162830DGB;
