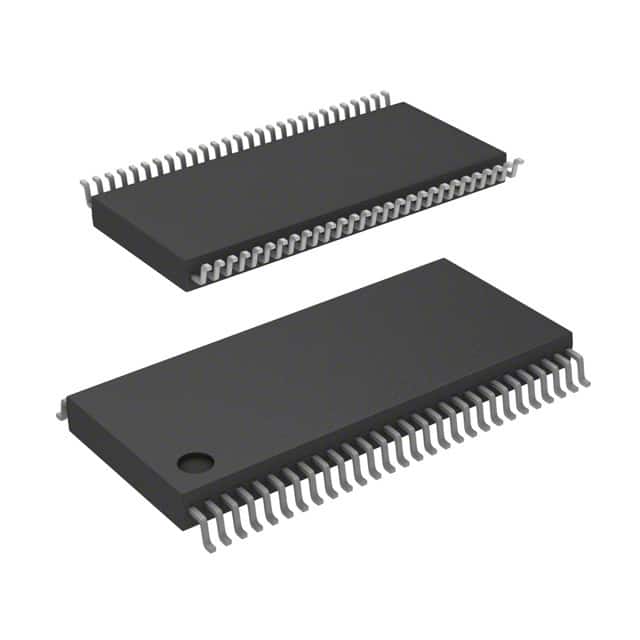

74LVCH16543APAG8
IC TXRX NON-INVERT 3.6V 56TSSOPManufacturer: Renesas Electronics Corporation
Categories: Buffers, Drivers, Receivers, Transceivers
Quality Control: Learn More
Renesas Electronics Corporation 74LVCH series transceiver, part number 74LVCH16543APAG8. This 2-element, 8-bit per element, non-inverting transceiver features 3-state outputs and operates from a 2.7V to 3.6V supply. It offers a robust drive capability of 24mA for both high and low outputs. The device is housed in a 56-TSSOP package, suitable for surface mounting. This component is commonly utilized in high-speed digital communication systems, data acquisition, and industrial automation applications.
Additional Information
Series: 74LVCHRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 56-TFSOP (0.240"", 6.10mm Width) |
| Output Type | 3-State |
| Mounting Type | Surface Mount |
| Number of Elements | 2 |
| Logic Type | Transceiver, Non-Inverting |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 2.7V ~ 3.6V |
| Input Type | - |
| Number of Bits per Element | 8 |
| Current - Output High, Low | 24mA, 24mA |
| Supplier Device Package | 56-TSSOP |
