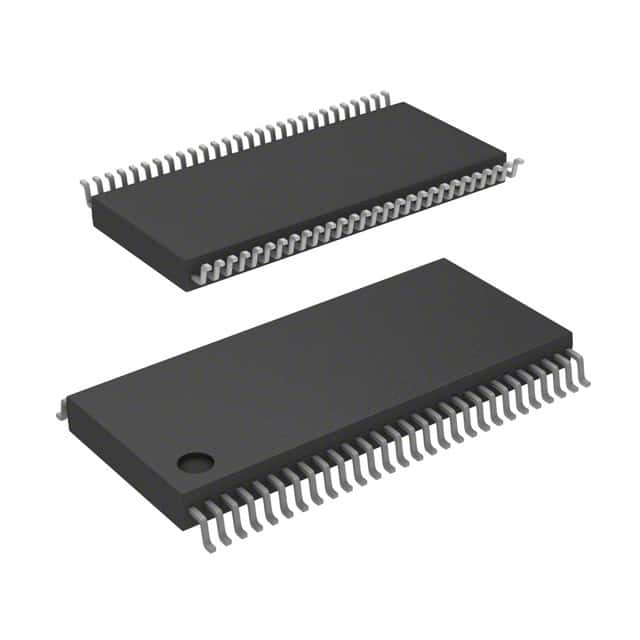

74FCT16952ETPAG8
IC TXRX NON-INVERT 5.5V 56TSSOPManufacturer: Renesas Electronics Corporation
Categories: Buffers, Drivers, Receivers, Transceivers
Quality Control: Learn More
Renesas Electronics Corporation's 74FCT16952ETPAG8 is an 8-bit, dual-element, non-inverting transceiver with 3-state outputs. This device operates over a supply voltage range of 4.5V to 5.5V and is housed in a 56-TSSOP package suitable for surface mounting. Each element offers robust drive capabilities with typical output currents of 32mA high and 64mA low. The 74FCT series transceiver is designed for high-speed digital applications, commonly found in telecommunications infrastructure, industrial automation, and advanced computing systems. The 56-TSSOP packaging is supplied on tape and reel.
Additional Information
Series: 74FCTRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 56-TFSOP (0.240"", 6.10mm Width) |
| Output Type | 3-State |
| Mounting Type | Surface Mount |
| Number of Elements | 2 |
| Logic Type | Transceiver, Non-Inverting |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 4.5V ~ 5.5V |
| Input Type | - |
| Number of Bits per Element | 8 |
| Current - Output High, Low | 32mA, 64mA |
| Supplier Device Package | 56-TSSOP |
