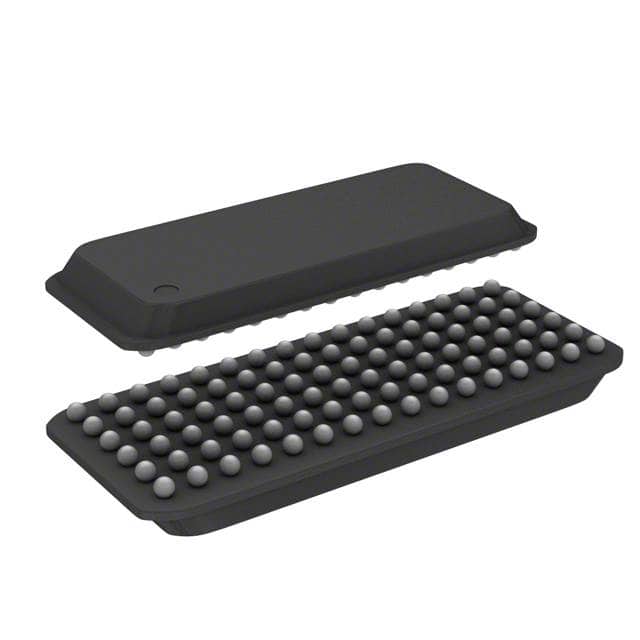

74ALVCH32245BF8
IC TXRX NON-INVERT 3.6V 96CABGAManufacturer: Renesas Electronics Corporation
Categories: Buffers, Drivers, Receivers, Transceivers
Quality Control: Learn More
Renesas Electronics Corporation's 74ALVCH32245BF8 is an 8-bit, non-inverting transceiver featuring four independent elements. This device operates with a supply voltage range of 2.7V to 3.6V and offers 24mA drive strength for both high and low outputs. The 74ALVCH series transceiver is supplied in a 96-CABGA (13.5x5.5) package, suitable for surface mounting. It is designed with 3-state outputs and is commonly utilized in automotive, industrial, and communication infrastructure applications requiring high-speed, low-voltage signal translation and buffering. The component's robust design and specified operating temperature range of -40°C to 85°C make it a reliable choice for demanding electronic systems.
Additional Information
Series: 74ALVCHRoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 96-LFBGA |
| Output Type | 3-State |
| Mounting Type | Surface Mount |
| Number of Elements | 4 |
| Logic Type | Transceiver, Non-Inverting |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 2.7V ~ 3.6V |
| Input Type | - |
| Number of Bits per Element | 8 |
| Current - Output High, Low | 24mA, 24mA |
| Supplier Device Package | 96-CABGA (13.5x5.5) |
