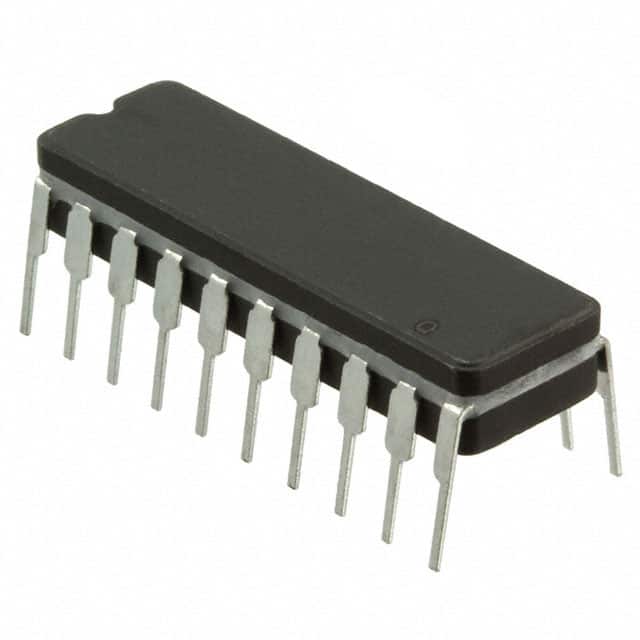

54FCT240CTDB
IC BUFFER INVERT 5.5V 20CDIPManufacturer: Renesas Electronics Corporation
Categories: Buffers, Drivers, Receivers, Transceivers
Quality Control: Learn More
Renesas Electronics Corporation 54FCT240CTDB is a high-speed, high-performance octal buffer/line driver featuring two inverting, 4-bit elements. This 20-CDIP packaged component offers a 3-state output with a drive capability of 12mA high and 48mA low. Operating across a voltage range of 4.5V to 5.5V, the 54FCT240CTDB is engineered for robust performance in demanding environments, with an extended operating temperature range of -55°C to 125°C. Its through-hole mounting design and 20-pin ceramic dual-in-line package (0.300" width) ensure reliable integration into established board layouts. This device is commonly utilized in industrial automation, telecommunications infrastructure, and military/aerospace applications requiring dependable signal buffering and power-efficient operation.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-CDIP (0.300"", 7.62mm) |
| Output Type | 3-State |
| Mounting Type | Through Hole |
| Number of Elements | 2 |
| Logic Type | Buffer, Inverting |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Voltage - Supply | 4.5V ~ 5.5V |
| Input Type | - |
| Number of Bits per Element | 4 |
| Current - Output High, Low | 12mA, 48mA |
| Supplier Device Package | 20-CDIP |
