NLSX4302EBMUTCG
IC TRANSLTR BIDIRECTIONAL 8UQFNManufacturer: onsemi
Categories: Translators, Level Shifters
Quality Control: Learn More

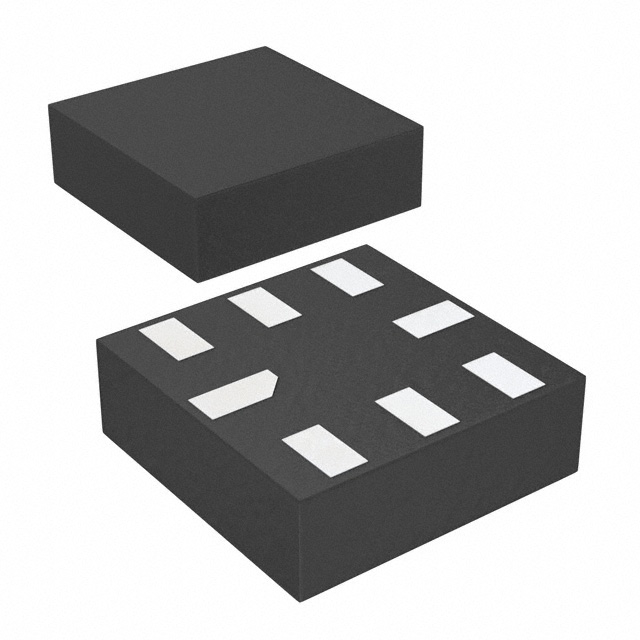

The onsemi NLSX4302EBMUTCG is a single-circuit, bidirectional voltage level translator featuring two channels. This component is designed for efficient signal translation between logic families operating at different voltage levels, supporting VCCA and VCCB ranges from 1.5V to 5.5V. With a data rate of 20Mbps and auto-direction sensing capabilities, it simplifies interface design. The NLSX4302EBMUTCG utilizes a push-pull output type and is housed in a compact 8-UQFN (1.4x1.2) surface-mount package, supplied on tape and reel. This translator is commonly employed in applications such as mobile devices, consumer electronics, and industrial control systems where signal integrity across varying voltage domains is critical. Its operational temperature range is -40°C to 85°C (TA).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Auto-Direction Sensing |
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-UFQFN |
| Output Type | Push-Pull |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Data Rate | 20Mbps |
| Supplier Device Package | 8-UQFN (1.4x1.2) |
| Channel Type | Bidirectional |
| Output Signal | - |
| Translator Type | Voltage Level |
| Channels per Circuit | 2 |
| Voltage - VCCA | 1.5 V ~ 5.5 V |
| Voltage - VCCB | 1.5 V ~ 5.5 V |
| Input Signal | - |
| Number of Circuits | 1 |
