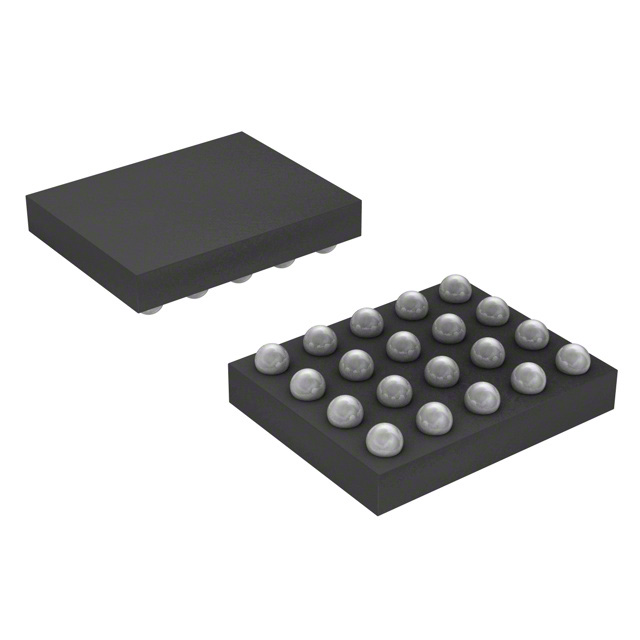

NLSX3013FCT1G
IC TRANSLATOR BIDIR 20FLIPCHIPManufacturer: onsemi
Categories: Translators, Level Shifters
Quality Control: Learn More
The onsemi NLSX3013FCT1G is an 8-channel, bidirectional voltage level translator designed for seamless interface between logic families operating at different voltage levels. This single-circuit translator offers auto-direction sensing, simplifying system design by automatically detecting the direction of data flow. With a maximum data rate of 100Mbps, it is suitable for applications requiring efficient signal translation. The NLSX3013FCT1G features Tri-State, Non-Inverted output signaling and supports VCCA supply voltages from 0.9V to 4.5V and VCCB voltages from 1.3V to 4.5V. Packaged in a compact 20-FlipChip (2.54x2.03) and supplied on tape and reel, this component is ideal for surface-mount applications in industries such as consumer electronics, mobile devices, and industrial control systems. Its operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Auto-Direction Sensing |
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-WFBGA, FCBGA |
| Output Type | Tri-State, Non-Inverted |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Data Rate | 100Mbps |
| Supplier Device Package | 20-FlipChip (2.54x2.03) |
| Channel Type | Bidirectional |
| Output Signal | - |
| Translator Type | Voltage Level |
| Channels per Circuit | 8 |
| Voltage - VCCA | 0.9 V ~ 4.5 V |
| Voltage - VCCB | 1.3 V ~ 4.5 V |
| Input Signal | - |
| Number of Circuits | 1 |
