MC100LVEL90DWG
IC TRANSLATOR UNIDIR 20SOICManufacturer: onsemi
Categories: Translators, Level Shifters
Quality Control: Learn More

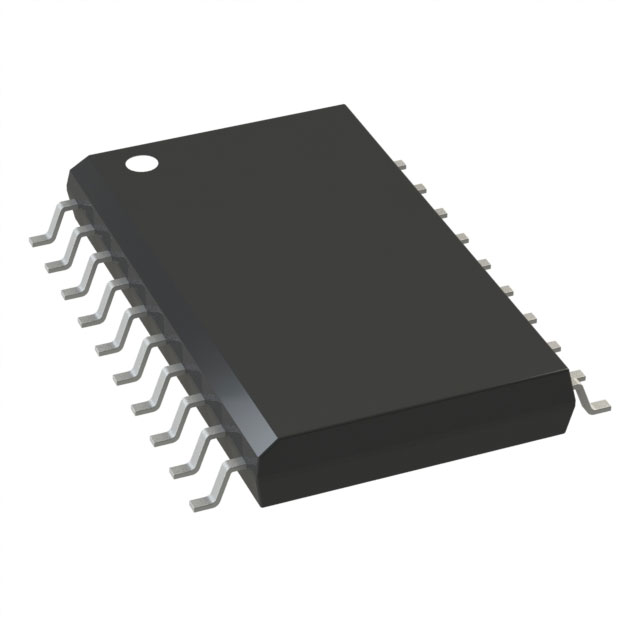

onsemi MC100LVEL90DWG is a unidirectional, mixed-signal translator featuring one circuit with three channels. This device operates within the 100LVEL series, translating input signals from ECL to LVPECL. The MC100LVEL90DWG is housed in a 20-SOIC (0.295", 7.50mm Width) package, suitable for surface mount applications. It is designed for operation across a temperature range of -40°C to 85°C (TA). This component is commonly utilized in high-speed communication systems and networking infrastructure where precise signal level translation is critical. The 20-SOIC package is supplied in bulk.
Additional Information
Series: 100LVELRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 20-SOIC (0.295"", 7.50mm Width) |
| Output Type | Differential |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Data Rate | - |
| Supplier Device Package | 20-SOIC |
| Channel Type | Unidirectional |
| Output Signal | LVPECL |
| Translator Type | Mixed Signal |
| Channels per Circuit | 3 |
| Input Signal | ECL |
| Number of Circuits | 1 |
