100324QIX
IC TRANSLATOR UNIDIR 28PLCCManufacturer: onsemi
Categories: Translators, Level Shifters
Quality Control: Learn More

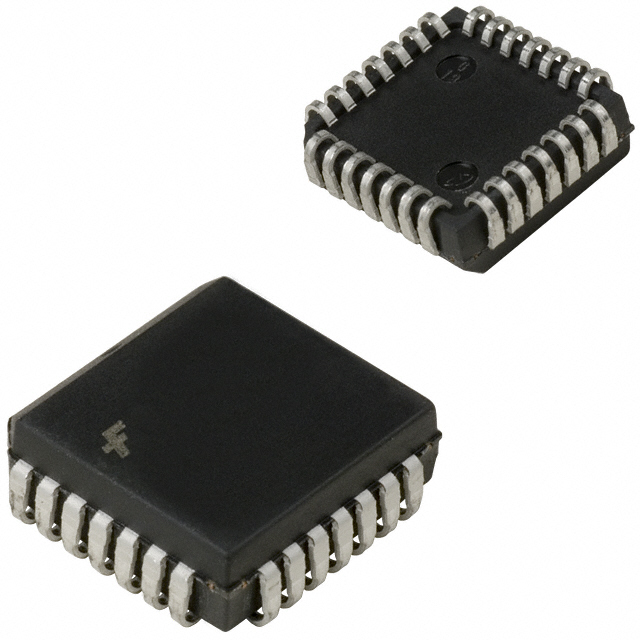

onsemi's 100324QIX is a unidirectional, mixed-signal translator featuring one circuit with six channels. This component facilitates signal level translation between TTL and ECL logic families. It is housed in a 28-PLCC (11.43x11.43) surface-mount package, supplied on tape and reel. The 100324QIX operates within an ambient temperature range of -40°C to 85°C. Its unidirectional channel type and differential output are suitable for applications requiring precise signal conditioning in telecommunications and industrial automation systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-LCC (J-Lead) |
| Output Type | Differential |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Data Rate | - |
| Supplier Device Package | 28-PLCC (11.43x11.43) |
| Channel Type | Unidirectional |
| Output Signal | ECL |
| Translator Type | Mixed Signal |
| Channels per Circuit | 6 |
| Input Signal | TTL |
| Number of Circuits | 1 |
