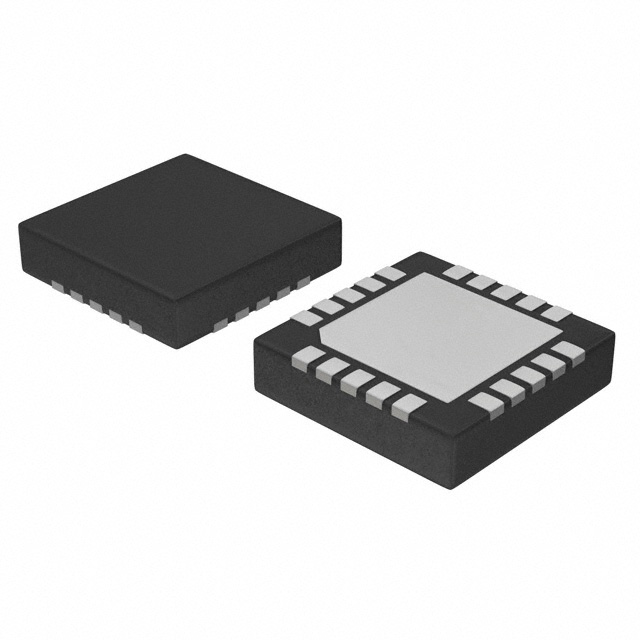

MC100EP57MNG
IC DIFF DIGIT MULTPL 1X4:1 20QFNManufacturer: onsemi
Categories: Signal Switches, Multiplexers, Decoders
Quality Control: Learn More
The onsemi MC100EP57MNG is a differential digital multiplexer from the 100EP series, featuring a 1 x 4:1 circuit configuration. This component is housed in a 20-QFN (4x4) package for surface mounting. Operating with dual supplies ranging from ±3V to ±5.5V, it is designed for high-speed differential signaling applications. The MC100EP57MNG is suitable for use in telecommunications infrastructure, high-performance computing, and test and measurement equipment where precise signal routing and low-voltage differential signaling (LVDS) compatibility are critical. Its robust design and operational temperature range of -40°C to 85°C ensure reliable performance in demanding environments.
Additional Information
Series: 100EPRoHS Status: ROHS3 CompliantManufacturer Lead Time: 44 week(s)Product Status: Last Time BuyPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Circuit | 1 x 4:1 |
| Type | Differential Digital Multiplexer |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | ±3V ~ 5.5V |
| Independent Circuits | 1 |
| Current - Output High, Low | - |
| Voltage Supply Source | Dual Supply |
| Supplier Device Package | 20-QFN (4x4) |
