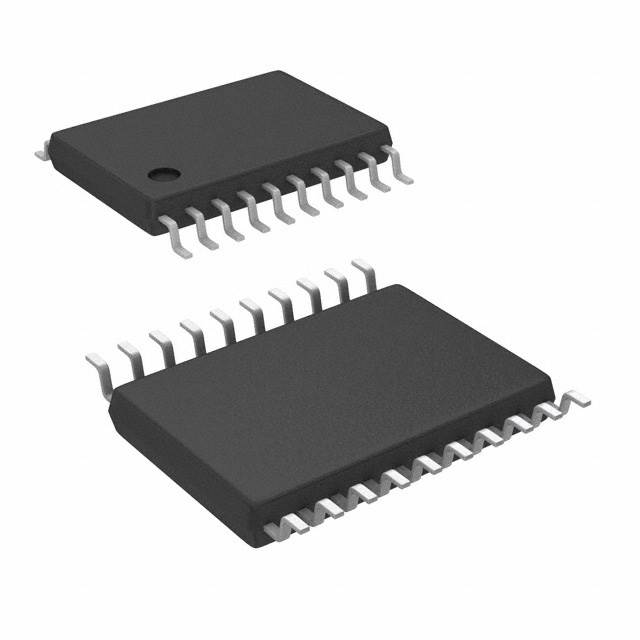

MC74HCT573ADTR2G-Q
IC TXRX/LATCH OCTAL 3ST 20-TSSOPManufacturer: onsemi
Categories: Latches
Quality Control: Learn More
The onsemi MC74HCT573ADTR2G-Q is an octal D-type transparent latch from the 74HCT series. This AEC-Q100 qualified component features a 1:8 circuit configuration with tri-state, non-inverted outputs. Designed for surface mounting, it is supplied in a 20-TSSOP package. Operating within a voltage range of 4.5V to 5.5V, the device offers a typical propagation delay of 30ns and a guaranteed output current of 6mA high and 6mA low. This automotive-grade latch is suitable for high-volume applications in the automotive sector.
Additional Information
Series: 74HCTRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-TSSOP (0.173"", 4.40mm Width) |
| Output Type | Tri-State, Non-Inverted |
| Mounting Type | Surface Mount |
| Circuit | 1:8 |
| Logic Type | D-Type Latch |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Independent Circuits | 1 |
| Current - Output High, Low | 6mA, 6mA |
| Delay Time - Propagation | 30ns |
| Supplier Device Package | 20-TSSOP |
| Grade | Automotive |
| Qualification | AEC-Q100 |
