NLX2G14AMX1TCG
IC INVERT SCHMITT 2CH 2IN 6ULLGAManufacturer: onsemi
Categories: Gates and Inverters
Quality Control: Learn More
The onsemi MiniGate™ NLX2G14AMX1TCG is a dual Schmitt-trigger inverter IC. This component features two independent input buffers, each with a Schmitt-trigger input for improved noise immunity. It operates with a supply voltage range of 1.65V to 5.5V, supporting both 3.3V and 5V systems. The device exhibits a maximum propagation delay of 4.9ns at 5V with a 50pF load. Its low quiescent current of 1µA makes it suitable for power-sensitive applications. The input logic levels are defined between 0.2V to 1.2V for low and 1.4V to 3.6V for high. With a high drive capability of 32mA for both high and low outputs, it is well-suited for driving capacitive loads. The NLX2G14AMX1TCG is housed in a compact 6-ULLGA (1.45x1) surface-mount package and is supplied on tape and reel. This component finds application in various industrial and consumer electronics, including telecommunications, automotive systems, and portable devices.
Additional Information
Series: MiniGate™RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Schmitt Trigger |
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-XFLGA |
| Mounting Type | Surface Mount |
| Logic Type | Inverter |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Output High, Low | 32mA, 32mA |
| Number of Inputs | 2 |
| Supplier Device Package | 6-ULLGA (1.45x1) |
| Input Logic Level - High | 1.4V ~ 3.6V |
| Input Logic Level - Low | 0.2V ~ 1.2V |
| Max Propagation Delay @ V, Max CL | 4.9ns @ 5V, 50pF |
| Number of Circuits | 2 |
| Current - Quiescent (Max) | 1 µA |
Request a Quote
Clients Also Buy
NL17SG08DFT2G
IC GATE AND 1CH 2-INP SC88A

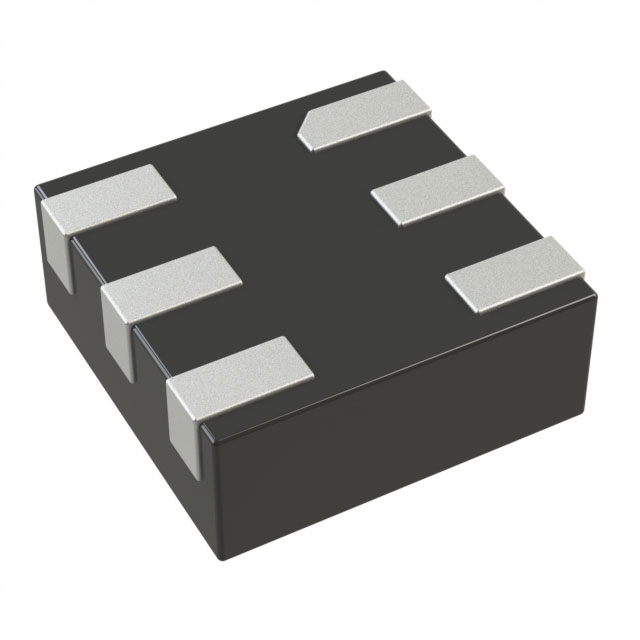

NLU1GT126CMUTCG
