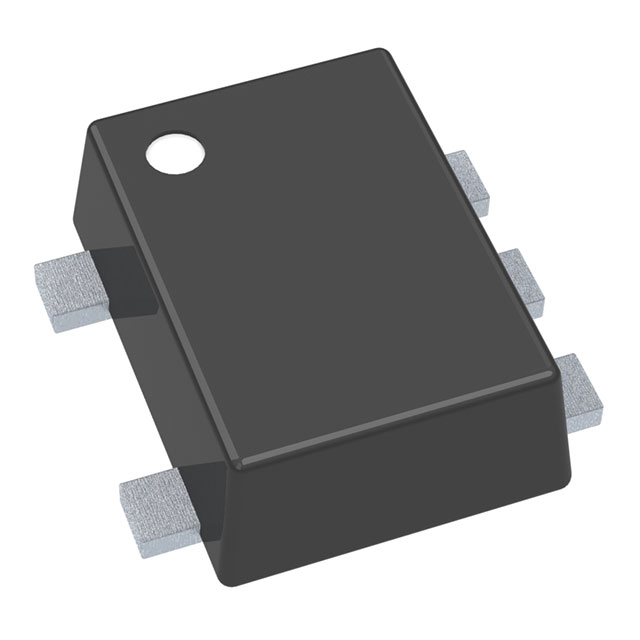

NL17SZ00XV5T2G-L22087
IC GATE NAND 1CH 2-INP SOT553Manufacturer: onsemi
Categories: Gates and Inverters
Quality Control: Learn More
The onsemi NL17SZ00XV5T2G-L22087 is a single-channel, 2-input CMOS NAND gate from the 17SZ series. This device offers a low quiescent current of 1 µA and high output drive capability of 32mA (high and low). With a maximum propagation delay of 4.3ns at 5V and 50pF, it is suitable for high-speed digital designs. The operating temperature range is -55°C to 125°C, and it operates from a supply voltage of 1.65V to 5.5V. Supplied in a compact SOT-553 surface-mount package on tape and reel, this component finds application in various industrial and consumer electronics, including telecommunications, computing, and automotive systems.
Additional Information
Series: 17SZRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-553 |
| Mounting Type | Surface Mount |
| Logic Type | NAND Gate |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Output High, Low | 32mA, 32mA |
| Number of Inputs | 2 |
| Supplier Device Package | SOT-553 |
| Input Logic Level - High | - |
| Input Logic Level - Low | - |
| Max Propagation Delay @ V, Max CL | 4.3ns @ 5V, 50pF |
| Number of Circuits | 1 |
| Current - Quiescent (Max) | 1 µA |
