NC7S08M5X-L22090

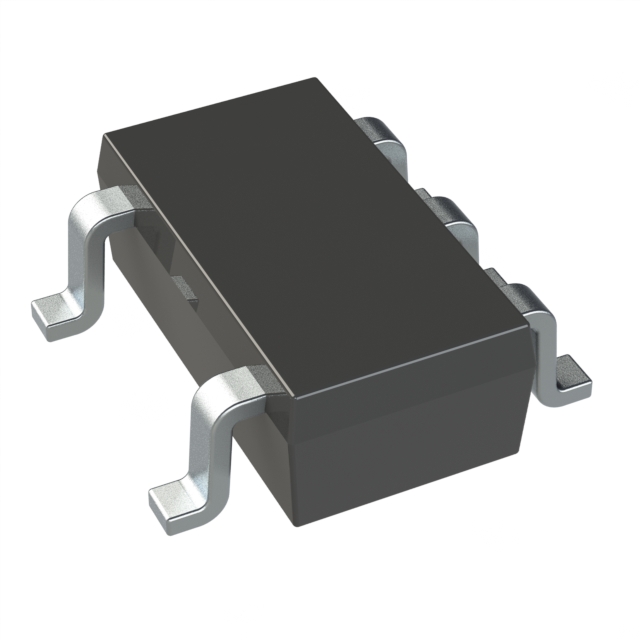

IC GATE AND 1CH 2-INP SOT23-5Manufacturer: onsemi
Categories: Gates and Inverters
Quality Control: Learn More
onsemi 7S Series NC7S08M5X-L22090 is a single-channel, 2-input AND gate logic IC. This device operates from a 2V to 6V supply range, featuring a low quiescent current of 1 µA. Input logic levels are specified at 0.5V for low and 1.5V for high. The NC7S08M5X-L22090 offers a maximum propagation delay of 17ns at 6V with a 50pF load. It is supplied in a SOT-23-5 (SC-74A, SOT-753) surface-mount package and is delivered on tape and reel. Typical applications include consumer electronics and industrial automation.
Additional Information
Series: 7SRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-74A, SOT-753 |
| Mounting Type | Surface Mount |
| Logic Type | AND Gate |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2V ~ 6V |
| Current - Output High, Low | 2.6mA, 2.6mA |
| Number of Inputs | 2 |
| Supplier Device Package | SOT-23-5 |
| Input Logic Level - High | 1.5V |
| Input Logic Level - Low | 0.5V |
| Max Propagation Delay @ V, Max CL | 17ns @ 6V, 50pF |
| Number of Circuits | 1 |
| Current - Quiescent (Max) | 1 µA |
