MC74VHC1G00DTT1G

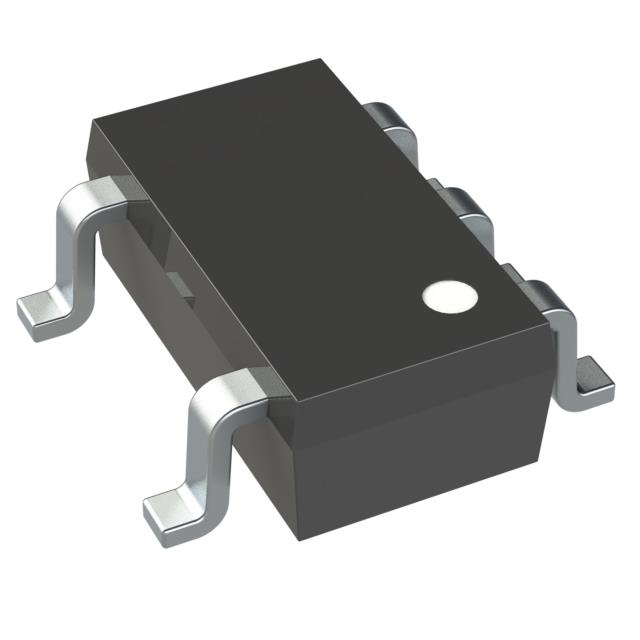

IC GATE NAND 1CH 2-INP 5TSOPManufacturer: onsemi
Categories: Gates and Inverters
Quality Control: Learn More
onsemi's MC74VHC1G00DTT1G is a single-channel, 2-input NAND gate from the 74VHC series. This device offers a low quiescent current of 1 µA and supports a wide supply voltage range from 2V to 5.5V. It features rail-to-rail output drive capability with up to 8mA current at both high and low levels. The device exhibits a maximum propagation delay of 7.5ns at 5V with a 50pF load. Input logic levels are specified from 0.5V to 1.65V for low and 1.5V to 3.85V for high. The MC74VHC1G00DTT1G is supplied in a 5-TSOP (Thin Small Outline Package) and is suitable for surface mounting. This component is commonly utilized in industrial automation, consumer electronics, and telecommunications applications. It is packaged in a Tape & Reel (TR).
Additional Information
Series: 74VHCRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Mounting Type | Surface Mount |
| Logic Type | NAND Gate |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Supply | 2V ~ 5.5V |
| Current - Output High, Low | 8mA, 8mA |
| Number of Inputs | 2 |
| Supplier Device Package | 5-TSOP |
| Input Logic Level - High | 1.5V ~ 3.85V |
| Input Logic Level - Low | 0.5V ~ 1.65V |
| Max Propagation Delay @ V, Max CL | 7.5ns @ 5V, 50pF |
| Number of Circuits | 1 |
| Current - Quiescent (Max) | 1 µA |
